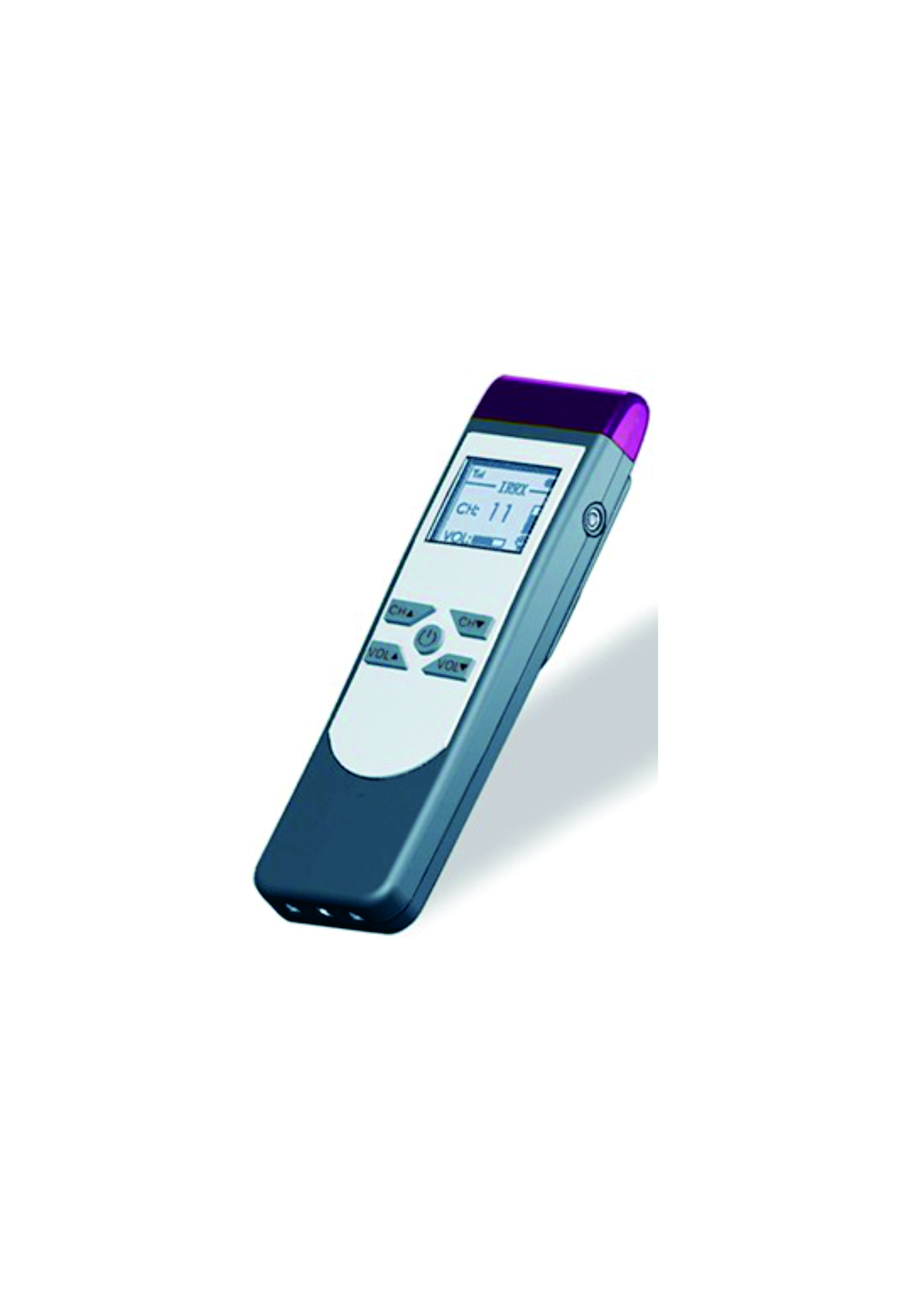

IR Wireless 12 Channel Receiver TS-703

Conference System Digital Conferencing Solutions

Main equipment of language distribution and simultaneous interpretation system.12 languages (ground and 11 international) simultaneous translation and distribution system.Ideal for international summit meeting, religious meeting and hotel rental use.

Conference System Digital Conferencing Solutions

Download Annex

Product Detail

Features:

Main equipment of language distribution and simultaneous interpretation system.
12 languages (ground and 11 international) simultaneous translation and distribution system.
Ideal for international summit meeting, religious meeting and hotel rental use.
The spokesman’s speech in different languages will be send to the interpreter unit by the IR transmitter, the translator will selected the language to translate by the interpreter unit, the translated speech will be simultaneously send back to the IR transmitter. This transmitter will receive 12 different voice inputs then generate the infrared wireless signal through the 12 different outputs to be radiated by the IR radiator, while the attendant with IR receiver could receive different translated language by selecting different receiving channels.
Stable strong signal for accurate wireless infrared transmission system to prevent interference.
One IR receiver capable of receive 12 languages by select different channels.
The system capacity of connection more than 5,000 IR receivers.
Pocket mini size for easy handheld use, with power switch, volume control and channel selector.
With IR receiver cover to prevent dust and filter lighting.
With earphone input to listen the different translations.
The LCD could display the selected channel, the battery status and signal strength.
Powered by the built-in rechargeable lithium battery. Full working time of 8 hours and 32 hours of standby.
With battery protection cover lock only to be opened by the supplied key.
With battery charge box to charge the IR receive directly before the use.
Earphone TS-705 is already included. Earphone TS-706 is optional to buy to work with the IR receiver.

Specifications:

Model	TS-703
Description	IR Wireless 12 Channel Receiver
Modulation Way	FM modulation
Frequency Synthesis	Digital PLL
Frequency Band	1.7-4.0MHz
Frequency Response	100-14KHz
Frequency Stability	10ppm
Pre-emphasis	75μSec.
Distortion	<0.5%
Channel Separation	>55dBA
Control	Power switch, volume and channel selector
Input	3.5mm earphone input
Display	LCD to display channel, battery and signal strength
Power Consumption	60mW
Operation Power	4.5V built-in rechargeable battery
Dimension	290(W)×198(D)×90(H)mm
Weight	0.1kg
