FCS-46EN EN54-24 Ceiling Speaker
EN54 Certified Speakers EN54-24 LoudspeakersFCS-46EN is EN54-24 certified voice alarm ceiling speaker with fire dome, 100V/70V, 1.5W/3W/6W, 4 inch driver, all metal, ceramic connector, thermal fuse and dedicated designed for voice alarm & voice evacuation system use.
EN54 Certified Speakers EN54-24 Loudspeakers
Feature:
- Commercial fireproof ceiling speaker with 100V/70V transformer.
- Ideal for school, office, hotel and airport voice evacuation and PA system.
- Compliant with the EN54-24 EVAC standard.
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse
- Rated power output 6 /3 /1.5 /0.75 W at 100V.
- 3' full range speaker driver unit.
- Line input 100V or 70V with transformer.
- Metal enclosure, metal grille and metal fire dome in white.
- In-ceiling quick installation by spring clip.
- Installation: remove the fire dome, wire the speaker cable and transformer tapping, fix up the fire dome.

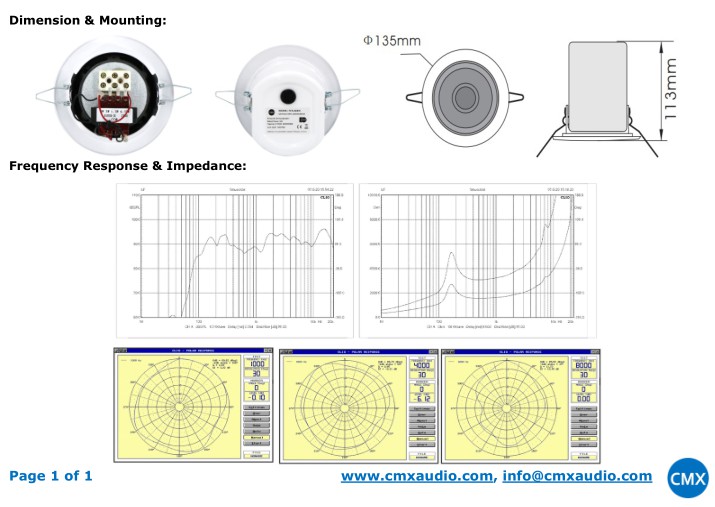

Specification:
Model | FCS-46EN |
Description | EN54-24 Ceiling Speaker |
Rated Power Output | 6 /3 /1.5 /0.75 W |
Line Input | 100V or 70V |
Frequency Response | 100-18KHz |
SPL(@1W/m) | 91dB |
Speaker Unit | 4” full range speaker driver unit |
Cutout Size | Ø 112mm |
Dimension | Ø 135×113mm |
Material | Metal enclosure, metal grille in white and fire dome in red |
Mounting Way | In-ceiling spring clip quick installation |
Weight | 1.3kg |
