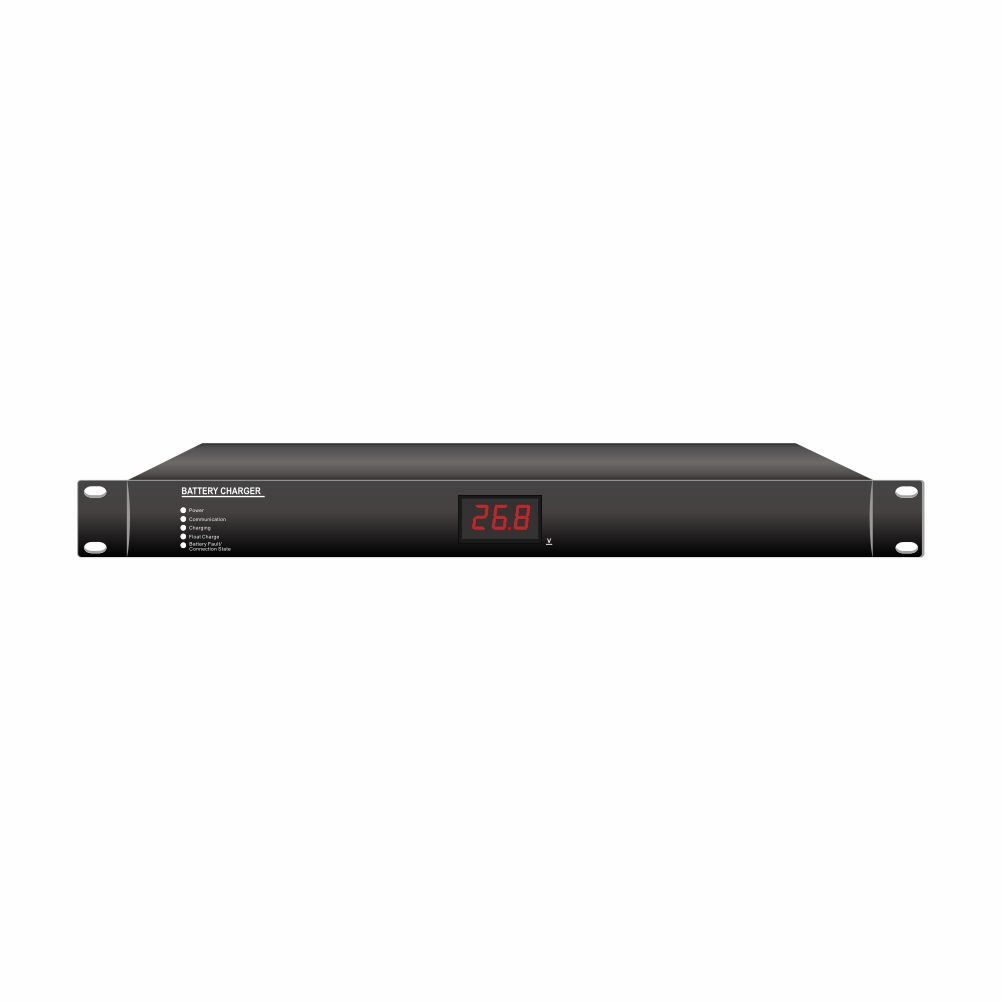

EVAC-500BC 24V DC Battery Charger and Power Supply
EVAC-500BC is 24V battery charger and emergency power supply, it is used to backup the power supply system in case of AC main power fails. It also will be used to charge the battery non emergency period.
Features:
- Auto switch into DC power supply when AC power fails
- Select auto/manual charging mode automatically
- Storage battery failure, over voltage, over-heat and over time charging detection
- Automatic temperature control fan and over heat protection
- Built-in battery charge management and monitoring circuit
- When connected to AC power, DC24V will be off automatically
- Storage battery support two or one DC 24V lead-acid battery
- Selection charging mode automatically to ensure safety charging and service life
- Pre-charge-constant current-trickle charge
- High charging efficiency and restore efficiency
- Support multiple volumetric battery≤200Ah
- With ID pre-set its zone number up to 200 units
- With RS485 to communicate with third party system
Specifications:
Model | EVAC-500BC |
Description | 24V DC Battery Charger and Power Supply |
Power Supply | 220V-240V, 50/60Hz |
AC Maximum Current | 2A |
AC Fuse | 250V/3.15A, low speed type |
DC Power Output | 24V DC battery |
DC Maximum Current | 10A+10A |
Maximum Charging Current | 10A adjustable |

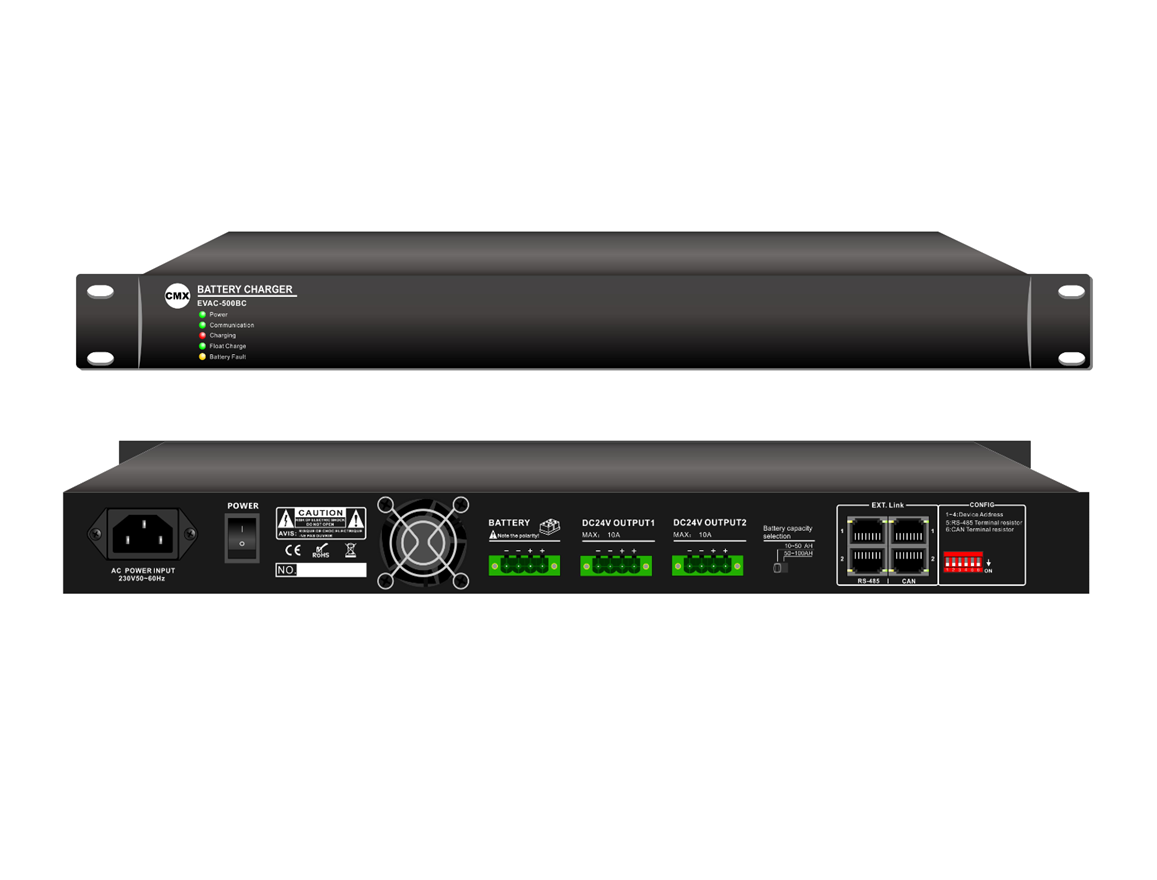

Connector | Two battery inputs, two 24V DC outputs, two RS485 and two CAN inputs. Battery capacity selector and ID selector. |
Cooling System | Speed controlled cooling fan |
Operation Temp | +5℃ to +45℃ |
Operation Humidity | <95% |
Dimension(mm) | 484×390×44 |
Weight | 4.65kg |
