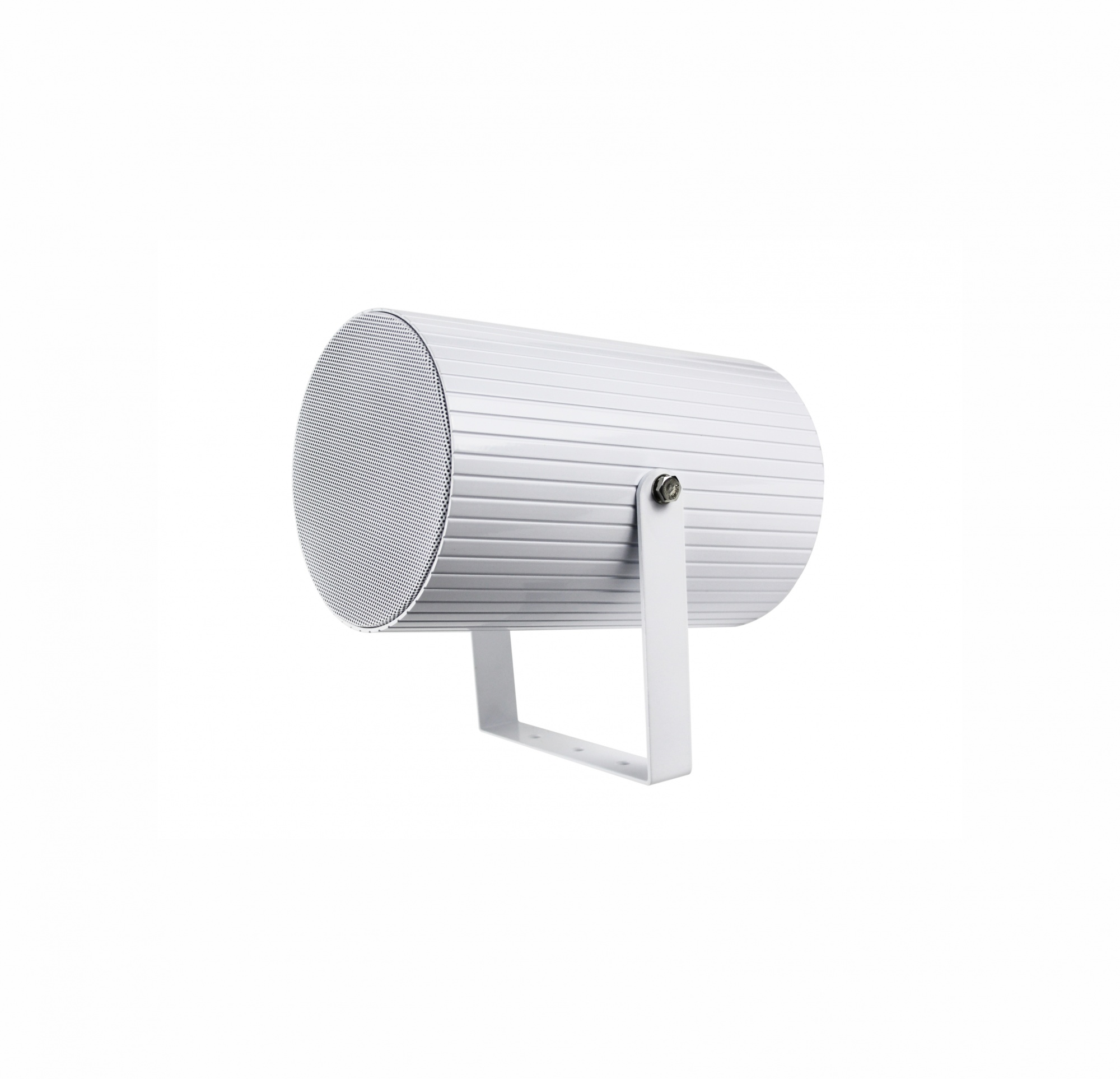

EN54-24 Sound Projector PJSK-20ASEN
Installation Loudspeakers 100 Volt Speakers Sound Projectors Projection Speakers EN54 Certified Speakers EN54-24 Loudspeakers Paging SpeakersEN54-24 Sound Projector PJSK-20ASEN.Rated power output 20W-10W-5W at 100V & 8 Ohm,Waterproof level of IP66,Ideal for outdoor music and speech use in school, office, hotel and airport
Installation Loudspeakers 100 Volt Speakers Sound Projectors Projection Speakers EN54 Certified Speakers EN54-24 Loudspeakers Paging Speakers
Feature:
- Compliant with the EN54-24 standards
- PA (Public Address) system sound projector with transformer
- Public Address outdoor sound projector for BGM & paging system
- Ideal for outdoor music and speech use in school, office, hotel and airport
- 6.5” PP full range waterproof woofer
- Rated power output 20W-10W-5W at 100V & 8 Ohm
- Waterproof level of IP66
- Built-in ceramic connector, 95℃ fire-resistant cable and thermal fuse
- Two AB waterproof glands
- Aluminum enclosure and stainless metal bracket in white
- Quick installation by supplied stainless mounting bracket
Specification:
| Model | PJSK-20ASEN |
| Description | EN54-24 Sound Projector |
| Rated Power Output | 20W-10W-5W at 100V & 8 Ohm |
| Speaker | 6.5” PP full range waterproof woofer |
| Line Input | 100V or 70V |
| Frequency Response | 110-15KHz |
| SPL(@1W/m) | 92dB |
| IP Rate | IP66 |
| Connector | Two AB waterproof gland |
| Dimension | Φ170×252mm |
| Weight | 2.8kg |
| Material | Aluminum enclosure and stainless metal bracket in white |
| Mounting Way | Quick installation by supplied stainless mounting bracket |

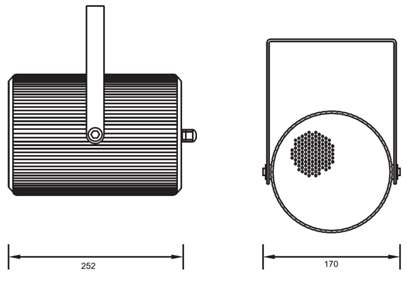

Side View & Dimension:

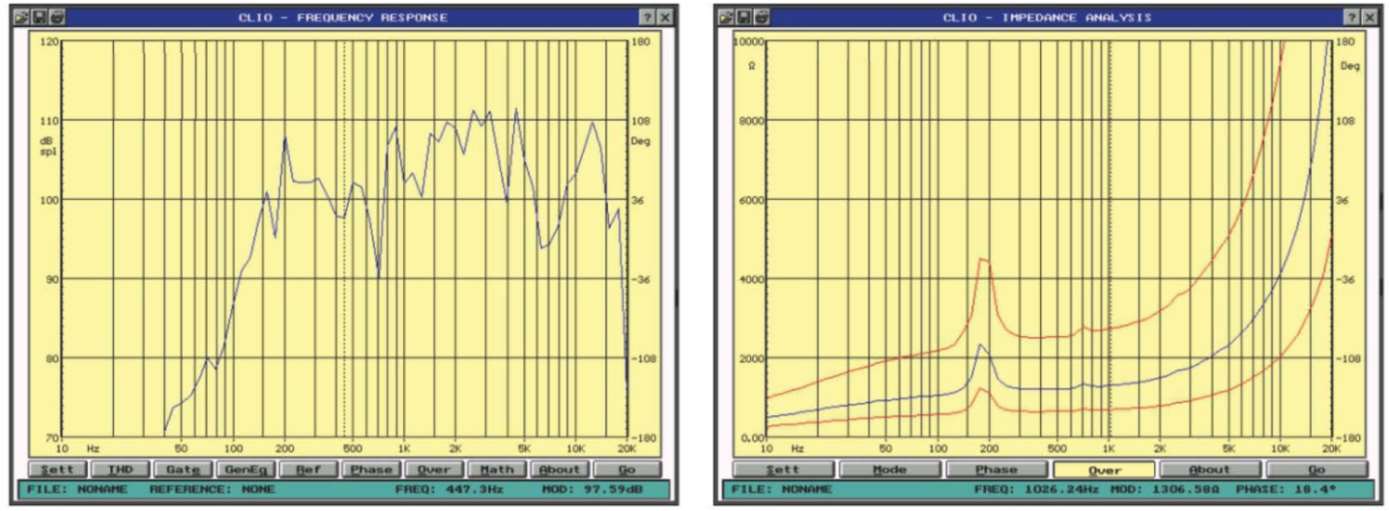

Frequency Response VS SPL Diagrams:
