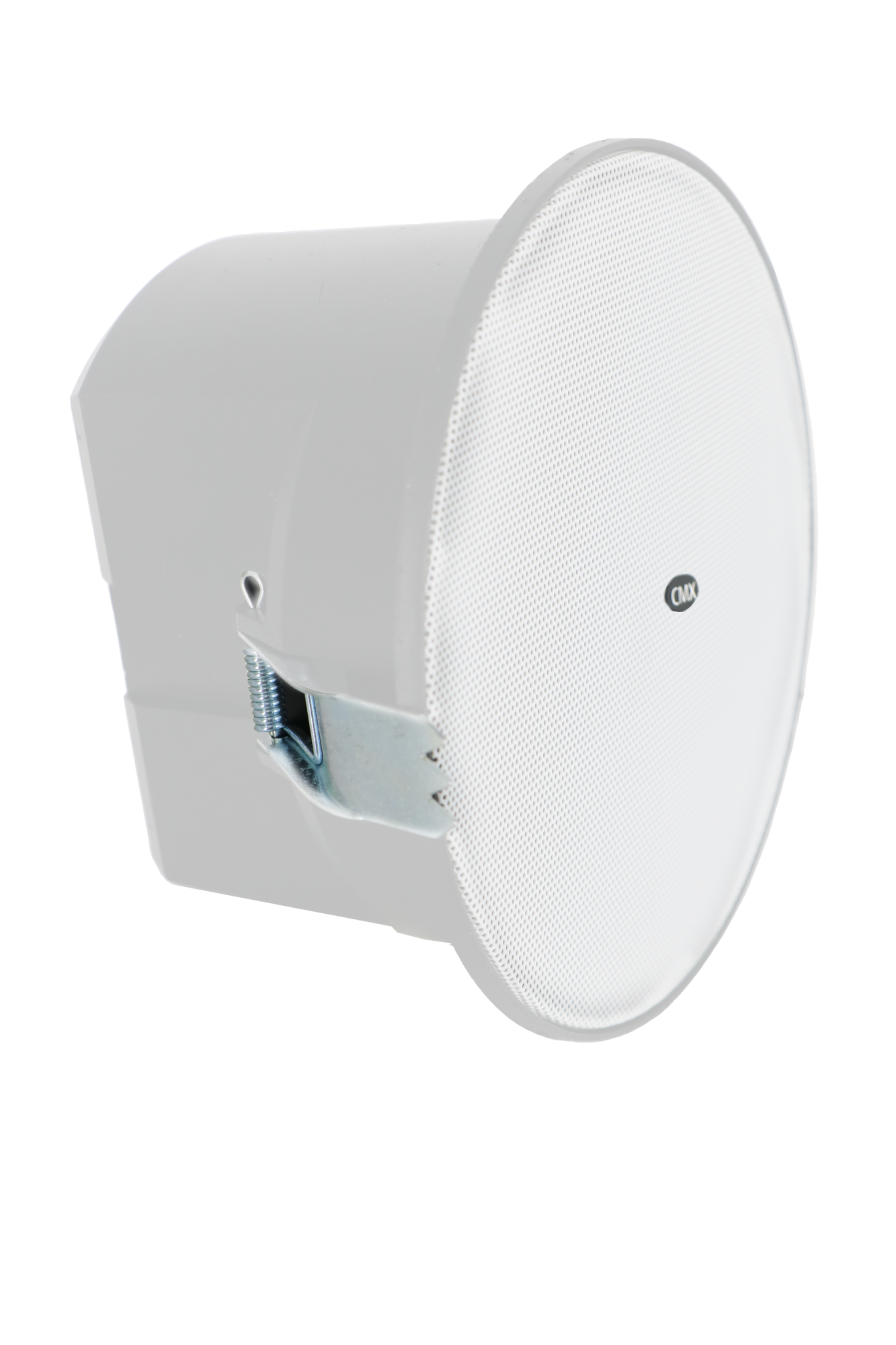

EN54-24 8” Ceiling Speaker CSK-830HAEN
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers ABS Speaker EN54-24 LoudspeakersEN54-24 8” Ceiling Speaker CSK-830HAEN，Built-in 100v/70v transformer for PA & VA system，Rated power output 30W-15W-7.5W at 100V，ABS enclosure,metal grille in white and with ABS back can
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers ABS Speaker EN54-24 Loudspeakers
Features:
- Compliant with the EN54-24 standards
- Built-in 100v/70v transformer for PA & VA system
- Commercial fireproof ceiling speaker with transformer
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse.
- Rated power output 30 /15/7.5 /3.75 W at 100V
- 8' full range fire resistant finish and rustproof speaker unit
- V0 fire resistant ABS enclosure,back box and metal grille in white
Specifications:
Model | CSK-830HAEN |
| Description | EN54-24 8” Ceiling Speaker |
| Power Taps 100V | 3.75W-7.5W-15W-30W |
| Sensitivity 1W/1m | 96dB |
| Frequency Response | 60-15KHz |
| Speaker Driver | 8” full range fire resistant finish and rustproof speaker unit |
| Finish | V0 fire resistant ABS enclosure,back box and metal grille in white |
| Mounting | Way In-ceiling spring clip quick installation |
| Cutout Size | Ø205mm |
| Dimensions | Ø233×142mm |
| Weight | 700g |
Installation & Wiring diagram:
Frequency Response and Impedance Diagram:
