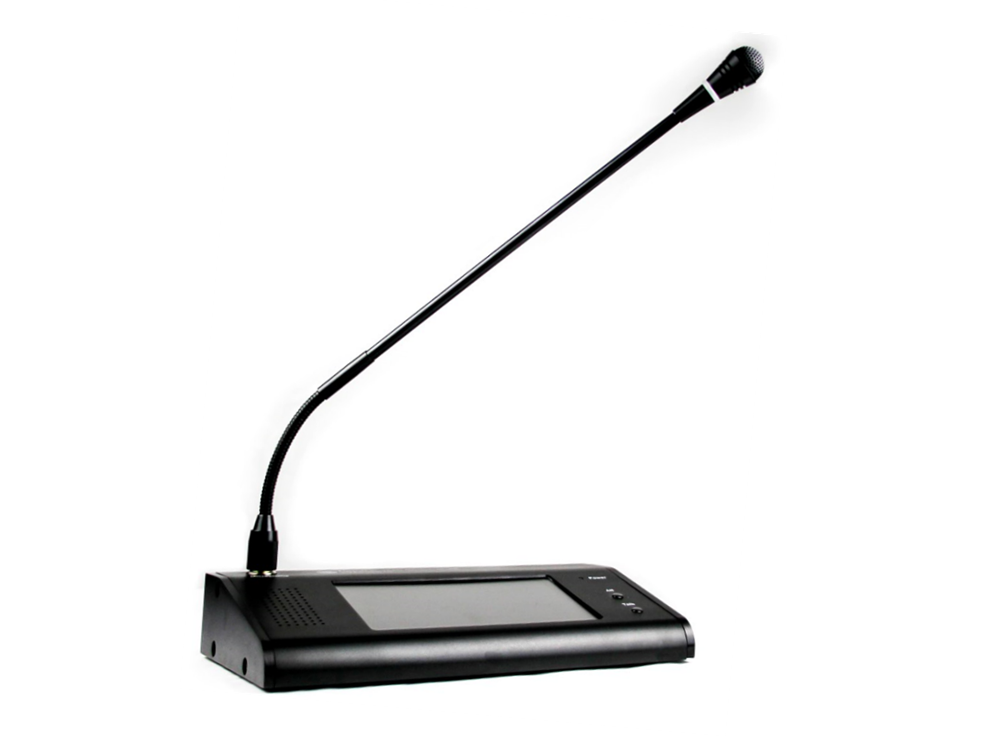

EN54-16 Touch Screen Remote Microphone EVAC-500TM
EVAC-500TM is EN54-16 certified remote paging microphone, which is used for voice alarm & evacuation system, live speech, pre-recorded message announcement, individual zone, group zone and all zone paging multiple modes for voice evacuation & paging system.
Feature:
- Touch screen remote microphone or call station
- EN54-16 Certified remote microphone
- Business & commercial zone live announcement use
- Multiple zones, single zone & all zone paging
- Each microphone of 120 zone capacity
- Support 32 remote microphones of loop redundancy connection
- The remote microphone unit is fully real time monitored
- Support PPT and lock type two modes
- Shielded CAT6 cable up to 600 meters
- Power supply from EVAC-500 controller
-
Description:
The EVAC-500TM touch screen remote microphone is EN54-16 certified and designed exclusively for EVAC-500 public address & voice evacuation system. The remote microphone is used for business and commercial live announcement to selected zones or all zones. The remote microphone is designed of 120 zone with busy & working indicators. Up to 32 units of remote microphone could be connected to the voice evacuation system via shielded CAT6 cable and RJ45 connectors in a redundancy loop up to 600 meters. The talk button maybe a PTT or lock type pre-set by the dipswitch on the rear of the microphone. Green LED indicates the microphone and zone active status. The remote microphone is 24VDC powered by the EVAC-500 controller. The voice evacuation system is strictly follow the Construction products Regulation（EU）No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment.
Specification:
Model | EVAC-500TM |
Description | Touch Screen Remote Microphone |
Power Consumption | 3W |
Zone Capacity | 120 Zones |
Input | Line: 350mV, 10kΩ, Mic: 5mV, 600Ω |
Frequency Response | 80Hz~16kHz |
THD | ＜1% at RMS,1KHz |
S/N Ratio | >70dB |
Operating Temp | -20℃ to +70℃; <95% no condensation |
Power Supply | DC24V, ±20% |
Dimension | 153×52×282 mm |
Weight | 1.3kg |
