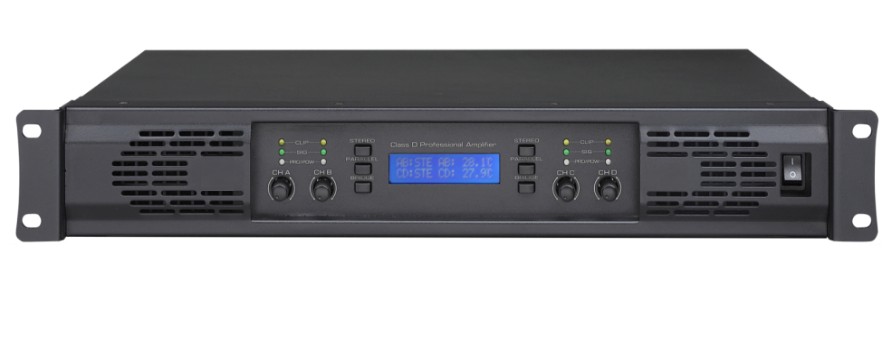

Digital Quad Power Amplifier D46 D48 D410 D412 600W to 1200W by Two Channels
Digital Quad Power Amplifier AD46 AD48 AD410 AD412 600W to 1200W by Four Channels. AD26 & AD28 digital Quad power amplifier is designed for professional sound system and sound reinforcement system, 1.5U height with LCD display, class-D, real RMS power output.
Digital Quad Power Amplifier
D46 D48 D410 D412
Digital Quad Power Amplifier series professional power amplifier is designed for live performance, permanent installation and sound reinforcement system, with LCD display of amplifier working status, four channel power output simultaneously at 600W to 1200W, with full protection system ideal for lecture hall sound system, fixed installation sound system, stadium sound reinforcement system and others speech or music system.
Feature:
Ideal for live performance, permanent installation and sound reinforcement system.
Switching power technology digital Class-D four channel power amplifier.
Green technology of 95% efficiency of less power consumption, less heat generation and longer life span.
With PWM special power circuit to ensure excellent cooling system.
19” universal rack mount type in 1.5U height.
Support quad output at 8Ω &4Ω, 2Ωand bridged output 8Ω& 4Ω.
With bridge, parallel & stereo selector on rear panel.
Rated power output 4×1100Wto 4×1800W @4Ω.
Four inputs by balanced XLR connector.
Four outputs by balanced Speakon connector.
LCD display shows mode (stereo, bridge) temp and volume level.
LED indicators of fault, clip, signal and active.
Complete protection includes DC, soft start, clip, high temp, overload and short circuit.
Wide range power supply of AC 160-240V.
Specifications:
Model | D46 | D48 | D410 | D412 |
Description | Digital Quad Power Amplifier | |||
Rated Output 8 Ohm Stereo | 4×600 W | 4×800 W | 4×1000 W | 4×1200 W |
Rated Output 4 Ohm Stereo | 4×1100 W | 4×1200 W | 4×1600 W | 4×1800 W |
Rated Output 2 Ohm Stereo | 4×900 W | 4×1000 W | 4×1400 W | 4×1600 W |
Rated Output 8 Ohm Bridged | 2200W | 2400W | 6400W | 7200W |
Rated Output 4 Ohm Bridged | 2400W | 2800W | 6000W | 6400W |
Frequency Response | 20-20 kHz (±1 dB) | |||
Input Sensitivity | 0.775V | |||
Input impedance | 20 KΩ balanced, 10 KΩ unbalanced | |||
Damping Factor | ＞550(1 kHz, 8Ω) | |||
Crosstalk | ＞100dB (1 kHz, 8Ω) | |||
THD | ＜0.05%, 8Ω 1KHz | |||
S/N Ratio | ＞105dB | |||
Input | Four balanced XLR inputs | |||
Output | Four balanced Speakon outputs | |||
Protection | DC, soft start, clip, high temp, overload and short circuit | |||
Power Supply | 160-240V AC~ 50-60 Hz | |||
Dimension | 484×290×66 mm (1.5U) | |||
Weight | 7.3kg | 7.5kg | 11.5kg | 12.1kg |
Model | AD46 | AD48 | AD410 | AD412 | |||
Description | Digital Quad Power Amplifier | ||||||
Rated Output 8 Ohm Stereo | 4×600 W | 4×800 W | 4×1000 W | 4×1200 W | |||
Rated Output 4 Ohm Stereo | 4×1100 W | 4×1200 W | 4×1600 W | 4×1800 W | |||
Rated Output 2 Ohm Stereo | 4×900 W | 4×1000 W | 4×1400 W | 4×1600 W | |||
Rated Output 8 Ohm Bridged | 2200W | 2400W | 6400W | 7200W | |||
Rated Output 4 Ohm Bridged | 2400W | 2800W | 6000W | 6400W | |||
Frequency Response | 20-20 kHz (±1 dB) | ||||||
Input Sensitivity | 0.775V | ||||||
Input impedance | 20 KΩ balanced, 10 KΩ unbalanced | ||||||
Damping Factor | ＞550(1 kHz, 8Ω) | ||||||
Crosstalk | ＞100dB (1 kHz, 8Ω) | ||||||
THD | ＜0.05%, 8Ω 1KHz | ||||||
S/N Ratio | ＞105dB | ||||||
Input | Four balanced XLR inputs | ||||||
Output | Four balanced Speakon outputs | ||||||
Protection | DC, soft start, clip, high temp, overload and short circuit | ||||||
Power Supply | 160-240V AC~ 50-60 Hz | ||||||
Dimension | 484×290×66 mm (1.5U) | ||||||
Weight | 7.3kg | 7.5kg | 11.5kg | 12.1kg | |||
