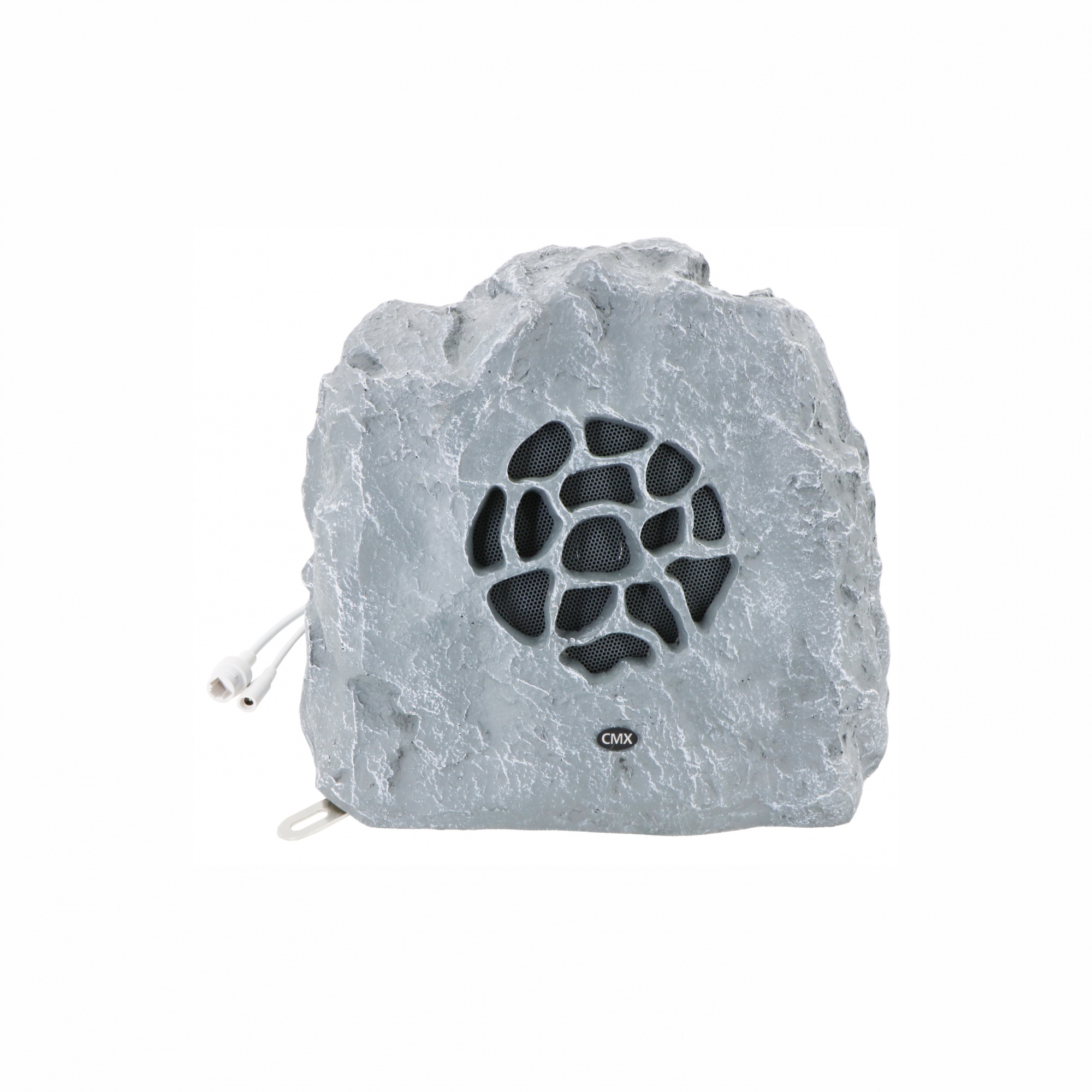

DI-97630P IP POE Rock Speaker
IP Speaker IP Audio SolutionsDI-97630P IP POE Rock Speaker,Integrated IP Network Audio Decoder, Amplifier, and Speaker: Utilizes hardware-based audio decoding,integrating an IP network hardware decoding module. It supports real-time music streaming from a server and
can receive one-way broadcast calls.
IP Speaker IP Audio Solutions
Feature:
- Professional Outdoor Integrated POE Network Audio Decoder Rock Speaker, featuring a built-in network decoding module, a digital stereo power amplifier, and multiple speakers.
- All-in-One Wall-Mounted Design: Made of cast aluminum, the speaker column boasts an exquisite and aesthetically pleasing design with meticulous craftsmanship.
- Integrated IP Network Audio Decoder, Amplifier, and Speaker: Utilizes hardware-based audio decoding,integrating an IP network hardware decoding module. It supports real-time music streaming from a server and can receive one-way broadcast calls.
- High-Speed Industrial-Grade Dual-Core Chip (ARM + DSP): Ensures a startup time of just 1 second.
- Built-in Power Amplifier: Output power of 20W, delivering CD-level sound quality.
- 1 RJ45 10/100M Network Port: Allows direct network access for seamless use.
- Remote Volume Adjustment: Supports volume control via IP network broadcasting software.
- Supports Standard POE Power Supply & DC 12V Power Supply.
- Metal-Fixed Internal Circuit Board: Designed for waterproof and moisture-proof protection, ensuring safety and reliability.
- Fireproof and Waterproof Speaker Mounting: The built-in speaker is secured with fire-resistant, flame-retardant, acid- and alkali-resistant PVC panels,offering true rainproof and sunproof protection.
- Easy Network Integration: Can be connected anywhere with an Ethernet port, supporting cross-network segment and cross-router communication.
Specifications:
Model | DI-97630P |
| Power Output | 20W (1KHz@-3dB) |
| Transmission Rate | 10/100Mbps |
| Protocols Supported | ARP, TCP/IP, UDP, ICMP, IGMP (Multicast) |
| Audio Format | MP3/MP2 |
| Audio Mode | 16-bit Stereo CD Bass |
| Sampling Rate | 8K-48KHz |
| Bitrate | 8K-512Kbps |
| Sensitivity | 92dB/1W/1M |
| Signal-to-Noise Ratio (SNR) | ≥85dB |
| Total Harmonic Distortion (THD) | ≤0.1% |
| Frequency Response | 100Hz-18KHz (±3dB) |
| Interfaces | 1 RJ45 Network Port, 1 DC 12V Power Input Port |
| Power Supply Input | POE 802.3af & DC 12V |
| Operating Temperature | -30℃ to +55℃ |
| Dimensions | 97 x 86 x 425mm |
| Weight | 2.8kg |
