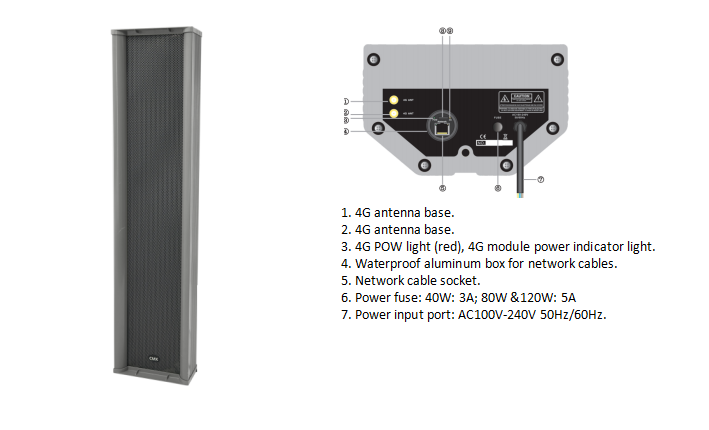

DI-9740G DI-9780G DI-97120G 4G 5G Wireless Outdoor Column Speaker
Active Speaker IP Audio Solutions IP Emergency Communication SystemDI-9740G is wireless IP based active speaker support 4G 5G wireless network, built-in ip decoder, amplifier and waterproof speaker for all in one wireless IP audio solution for park, zoo, mountain area, garden, tourism places etc.
Active Speaker IP Audio Solutions IP Emergency Communication System
Description:

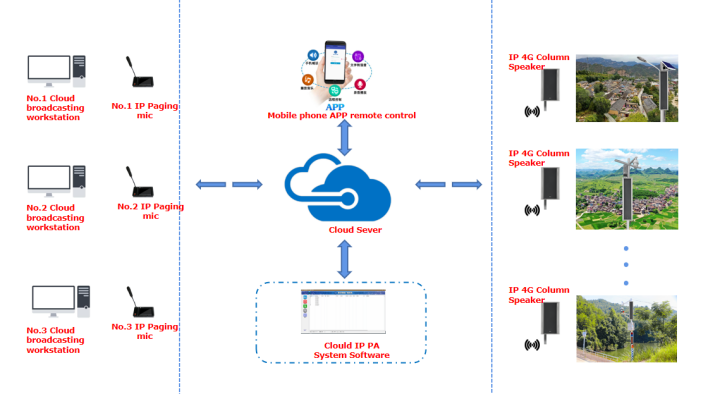

4/5G Cloud Network Wireless PA system is a network PA system based on TCP/IP protocol and adopts transmission methods of 4/5G network,Internet and Radio Digital Signal.4/5G cloud network PA system deploys servers in a cloud wide area network, and terminals adopt a 4/5G wireless network architecture to achieve control and management of any 4/5G wireless device by the cloud control center. It can also set up multi-level sub control centers for device control, supporting real-time, timed, triggered and other broadcasting methods, and it can realize multi-level broadcasting and control, single zone broadcasting.When is on emergency situation,it can use 4/5G Network to broadcast EMC message by the speaker.
4/5G cloud broadcasting has the characteristics of no need for wiring, convenient installation, low maintenance cost, simple system operation and use, good sound quality, and unlimited number of terminals, making it suitable for areas with difficult wiring such as village to village communication.
The sound quality of IP 4/5G Outdoor column speaker can reach CD tone, Output power can reach 40W/80W/120W. It is designed of wide range AC 100-240V power supply to support universal market applications.
Feature:
- All in one outdoor IP column speaker includes IP streaming, IP decoder, amplifier and speaker.
- Outdoor IP horn speaker support 4/5G module.
- Ideal for upgrade analog PA system into IP based system without changing existing analog amplifier & speakers.
- Huge system capacity of 6,000 zones.
- Adopting high-speed industrial grade dual core (ARM+DSP) chips, with a startup time of 1s.
- Built in power amplifier, output power: 40W/80W/120W, sound quality up to CD tone.
- Equipped with one RJ45 10/100M network interface, it can be directly connected to the network for use.
- The volume can be adjusted remotely and arbitrarily through IP PA System software.
- Built in multiple 6-inch woofer and 1 tweeter unit for clear sound quality.
- The built-in circuit board is fixed with metal, waterproof, moisture-proof, and safe and reliable.
- The built-in speaker is fixed with fire-resistant, flame-retardant, acid alkali waterproof PVC plastic board, truly achieving rain and sun protection.
- It can be accessed from places with Ethernet ports, supporting cross network segments and cross routing.
- Ideal for school, office, restaurant and fitness center IP PA sound system.
- Wide range AC 100-240V power supply to support universal market applications
Specification:
Model | DI-9740G | DI-9780G | DI-97120G |
Description | IP 4G Outdoor Column Speaker | ||
RMS Power | 40W | 80W | 120W |
Power Consumption | ≤48W | ≤96W | ≤150W |
Built-in speaker | 2pcs woofer & 1pcs tweeter | 4pcs woofer & 1pcs tweeter | 6pcs woofer & 1pcs tweeter |
Driver size | 6” waterproof paper basin woofer in 20W/8ohm, Tweeter is 50W/8phm. | ||
Network Protocol | TCP/IP,UPP,IGMP,support group broadcasting | ||
Network Speed | 10/100Mbps | ||
Audio Format | 16 digit stereo CD tone, MP3, MP2 | ||
Audio Sampling | 16K～48KHz | ||
Harmonic distortion | ≤0.3% | ||
S/N Ratio | ≥90dB | ||
Frequency Response | 200K-16KHz ±3dB | ||
Working Temperature | -20℃ to +60℃ | ||
Humidity | 10% ~ 90% | ||
Power Supply | 100-240V AC, 50-60Hz | ||
Dimensions | 616×226×145mm | 960×226×145mm | 1304×226×145mm |
