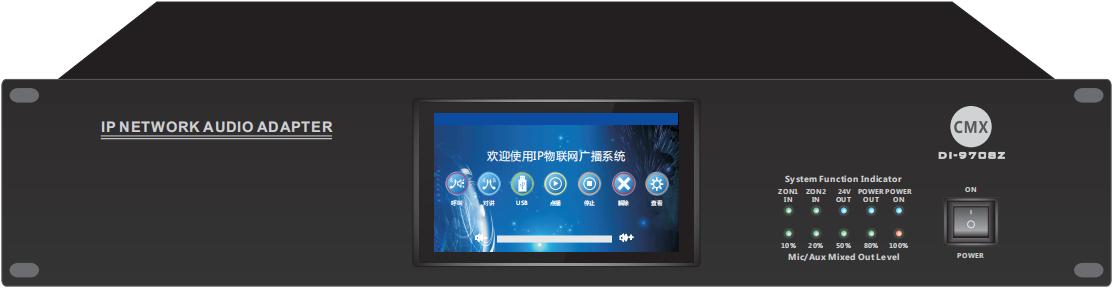

DI-9708Z Two Channel 8 Zone IP Network Audio Adapter

Graphic
Detail

DI-9708Z Two Channel 8 Zone IP Network Audio Adapter

IP Audio Solutions

The IP Network Audio Adapter DI-9708Z is a two channel 8 zone audio adapter,which can support IP audio encoder and
IP audio decoder at the same time,which can encode various analog audio sources media player & microphone over IP
audio streaming and also can decode various IP audio, server audio into analog to Pre-amplifier or mixer amplifier or
active loudspeakers.It support 2CH 100V input, which can be connected to the 100V output of two power amplifiers with
different signal sources to ach

IP Audio Solutions

Download Annex

Product Detail

Product introduce

The IP Network Audio Adapter DI-9708Z is a two channel 8 zone audio adapter,which can support IP audio encoder and IP audio decoder at the same time,which can encode various analog audio sources media player & microphone over IP audio streaming and also can decode various IP audio, server audio into analog to Pre-amplifier or mixer amplifier or active loudspeakers.It support 2CH 100V input, which can be connected to the 100V output of two power amplifiers with different signal sources to achieve device play different music at the same time. Equipped with two AC220V power interface outputs, the maximum output rate can reach 3KW, and each channel has a maximum output power reach 1500W. The output socket adopts a universal interface and is suitable for various plugs.The two channel 8 zone IP audio encoder decoder is compatible with DI-9700 full range all IP decoders, IP amplifiers & IP speakers. The DI-9708Z is of 19” rack mount design. The network audio adapter is ideal to work with existing analog sound system upgrade into IP audio system by keep using the analog amplifier and loudspeakers, it is also used to connect with audio sources like Mp3, CD, DVD player over IP transmission or decode IP audio into analog to Pre-Amplifier or mixer.

Feature

Standard configuration includes one 10/100M RJ45 interface, IP based public address system over LAN/WAN or Internet
Adopts industrial grade dual core processing chips (ARM+DSP), with a startup time of less than 1S
Built-in network IP decoding module can play real-time network music and paging,collecting playback and call functions,network latency time is less than 30mS
2 Mic inputs, 2 Aux inputs, and 1 Aux output, each with independent volume adjustment
Support 3-level priority function, with MIC1 set as the highest priority. Default network and MIC2,AUX1 and AUX2 are given second priority.
2 control input and 2 control output interfaces
Support DC24V/1.5A strong cut power interface that can be connected to 31pcs volume controller
Support bidirectional on-demand and call functions, allowing both parties to communicate with each other with a delay time less than 30mS
Built in MP3 decoding module, capable of displaying song names, supporting previous and next tracks, playback, and temporary playback
Support one-way on-demand function, which allows for free on-demand playback of server content on this terminal through server software
Equipped with 2CH 100V input, it can be connected to the 100V output of two power amplifiers with different signal sources.Each amplifier can be divided into four zones and has 8CH output terminal
Equipped with two AC220V power interface outputs, the maximum output rate can reach 3KW, and each channel has a maximum output power reach 1500W. The output socket adopts a universal interface and is suitable for various plugs
Support wake-up mode on the rear control power supply, which automatically turns on when a network signal arrives and automatically turns off when the signal ends
Equipped with a USB port, it can play USB music to any terminal locally or on the network
Support an emergency short-circuit input port that can accept short-circuit signals from various terminals. This port can urgently wake up the machine and turn on the 24V fire power output ports

Model	DI-9708Z
Description	8 Zone IP Network Audio Adapter
Protocol Support	TCP/IP, UPP, IGMP (multicast)
Transmit Speed	10/100Mbps
Sampling Rate	16K-48KHz
Audio Format	MP3/MP2
Display	4.3 'capacitive touch screen
Input sensitivity	MIC：20mv/AUX:250mv
Line output level	0.775V 1V/1KΩ, Default 0.775V/1KΩ
Frequency Response	160Hz~16KHz
THD	≤0.3%
S/N Ratio	≥65dB
Trigger input	2CH control input /2CH 100V input
Output mode	2CH control output / 2CH AC220 output / 8 zone output
Output power	3000W
Working Temp	-20℃ to +60℃
Humidity	10% ~ 90%
Power Consumption	≤35W
Power Supply	AC110V-230V, 50-60Hz
Dimensions	483x90x263mm
Weight	5.2kg
