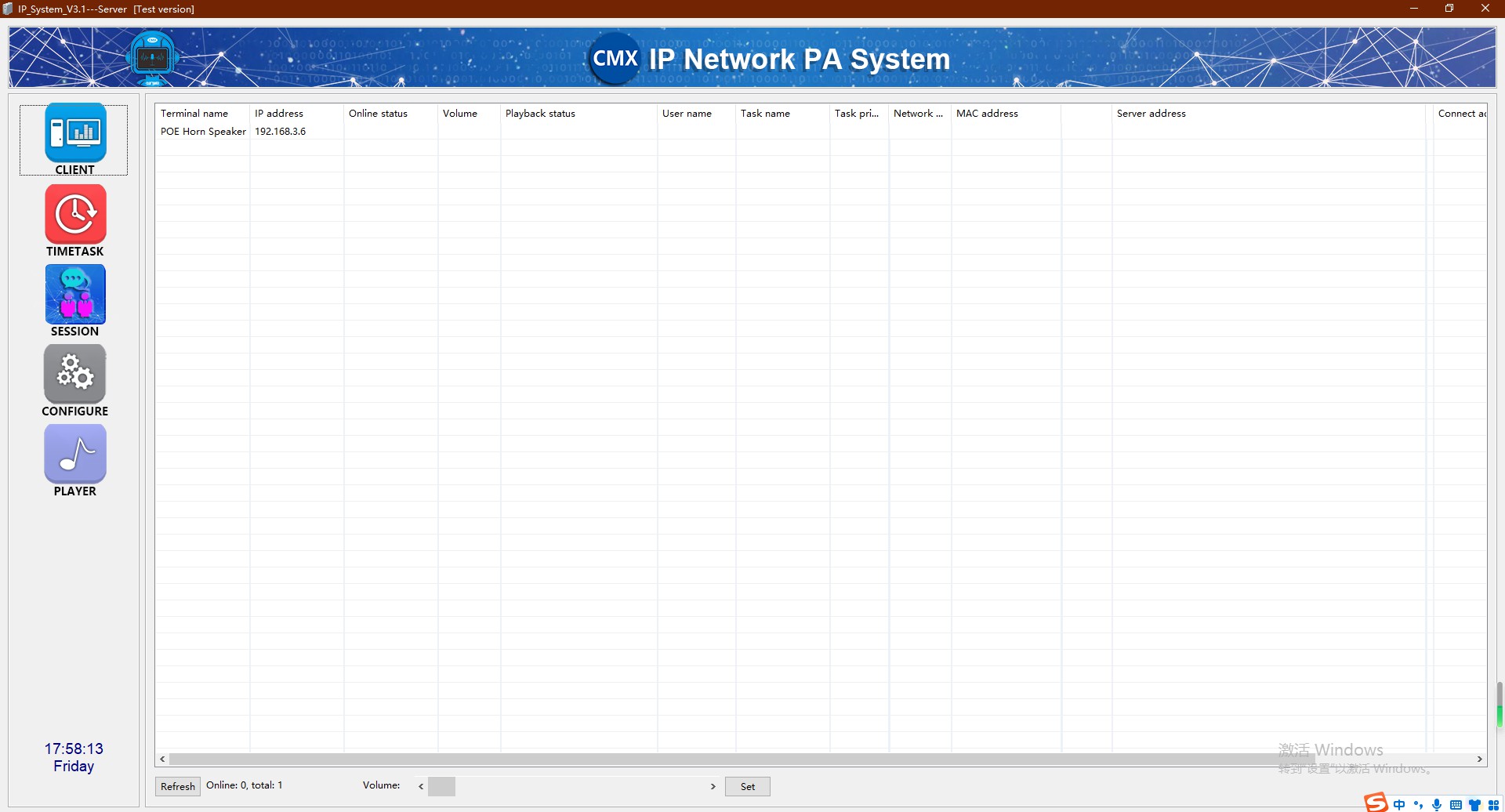

DI-9700SF IP Network Audio System Software
IP Audio SolutionsDI-9700SF is IP network audio system management server center, where remotely centralized control the IP PA system. The software server control center is built-in audio encoder, media player, schedule timer, status monitor, event recorder and re-setting and configuration.
IP Audio Solutions
IP Network Audio System Software
DI-9700SF
Feature:
- Server of IP network audio system and IP Public Address (PA) system.
- Support Windows 2000, Windows 7, Win8 & Win10.
- All display in English and system zone capacity more than 6,000.
- Support max 5 different sound cards for simultaneously sources collection.
- One software packet includes administrator and branch server and alarm server.
- Built-in system set up, audio encoder, system monitor, media player, program timer, system memory functions.
- Cloud broadcast Mp3 file online, scheduled and matrix at pre-set time to designated loudspeaker zones.
- All equipments working status could be monitored and displayed on this software.
- Flexible multiple level loudspeaker zone definitions, end-user can define loudspeakers into up to 6000 zones at the same time.
- Built-in timer could broadcast pre-recorded message, bell, song to selected zones by trigger contact or manually operation.
- The head equipment to encode analog sources into digital source to be transferred over network.
- Graphic maps display for visually simple monitoring and operation.
Specification:
Model | DI-9700SF |
Description | IP Network Audio System Software |
System | Windows 2000, XP, Win7, Win8 & Win10 |
Network Protocol | TCP, UDP, ARP, ICMP, IGMP |
Network Speed | 10/100Mbps |
Audio Sampling | 8KHz-44.1KHz, 16 bits |
Transmission Rate | 8Kbps to 320Kbps |
S/N Ratio | ≥90dB |
Frequency Response | 20Hz-20KHz |
Data Delay | 30 milliseconds |
Built-in Timer | Built-in weekly timer |
Encoder | Built-in audio encoder |
Audio Format | MP2, Mp3, PCM & ADPCM |
