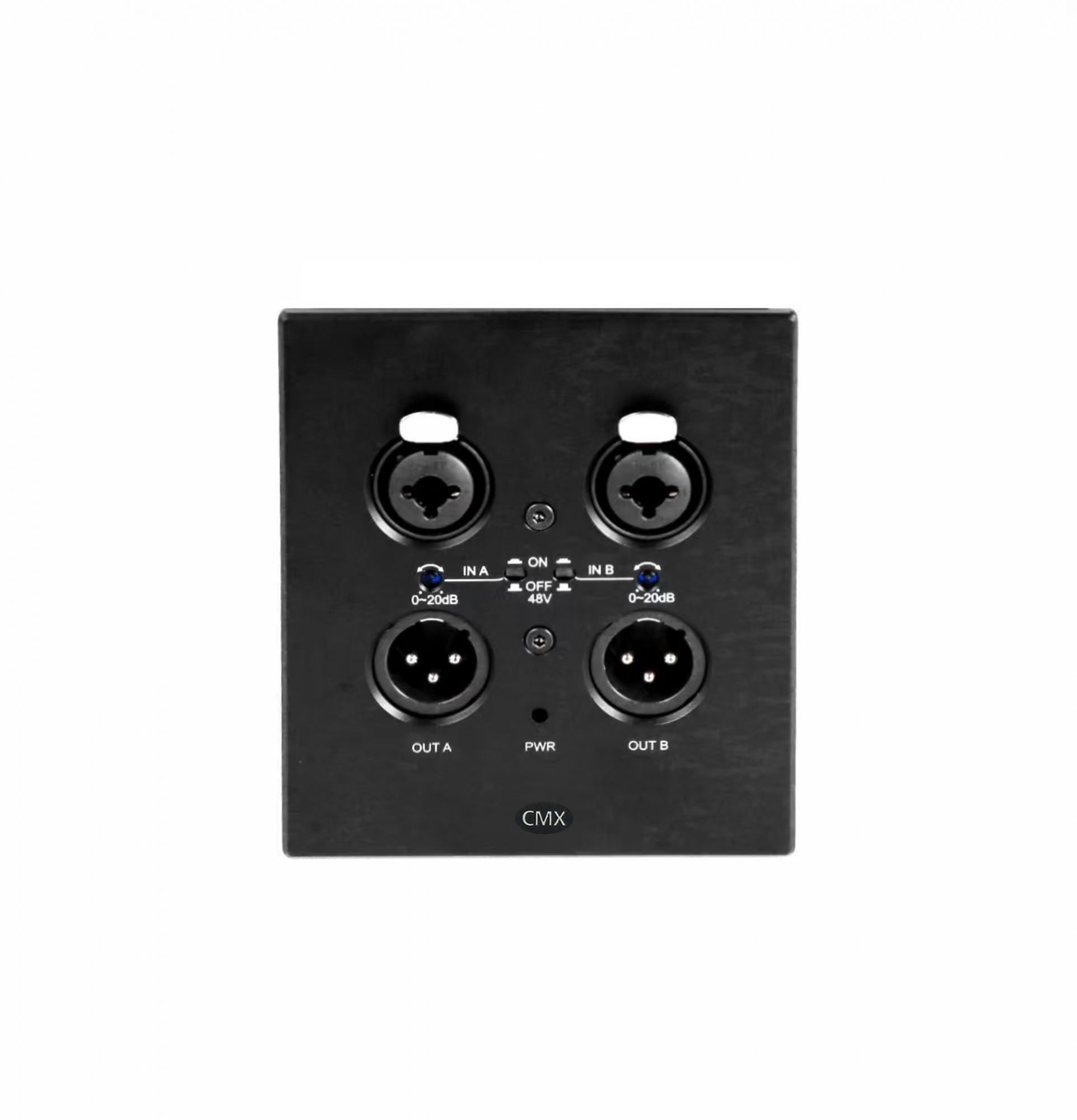

DANTE-W2X2IO DANTE DIGITAL INTERFACE BOX
Dante Amplifier Dante AudioThis product supports two sets of balanced l/0 analog sianals to be connected to the Dante system through a local area network. The input interface uses a 2-in-1XLR socket and provides phantom power switch and input signal gain adjustment functions. The output interface is a standard three pin XLR socket, which outputs balanced analog signals.There are also four output versions for you to choose from. Please use Category 5 or above shielded twisted pair cables to connect the PoE switch to the ba
Dante Amplifier Dante Audio
BRIEF INTRODUCTION
This product supports two sets of balanced l/0 analog sianals to be connected to the Dante system through a local area network. The input interface uses a 2-in-1XLR socket and provides phantom power switch and input signal gain adjustment functions. The output interface is a standard three pin XLR socket, which outputs balanced analog signals.There are also four output versions for you to choose from. Please use Category 5 or above shielded twisted pair cables to connect the PoE switch to the back network interface
BASIC FUNCTION DESCRIPTION
- Dante2X2 wall panel, used for signal conversion between analog audio signals and Dante digitalaudio.
- This device supports 2-channel analog input and 2-channel analog output
- This device supports 2-channel Dante input and 2-channel Dante output.
- This device supports converting analog input to Dante digital audio; Support Dante digital audio conversion to analog audio output.
- Each channel simulates input with phantom power switch and manual gain adjustment knob.
- POE power supply,compatible with 802.3af and 802.3at standard POE switches
- Front panel independent power indicator light.
Parameters
| Simulate maximum gain | 20dB |
| Frequency response | ±0.2dB(20~20kHz) |
| Maximum voltage level | +8dBu, balanced |
| THD+N | <0.002% @ 0dBu |
| Bottom noise | -97dBu |
| Input impedance | 20 kΩ |
| Output impedance | 100Ω |
| Channel isolation degree | 100dB @ 1kHz |
| Power supply | PoE |
