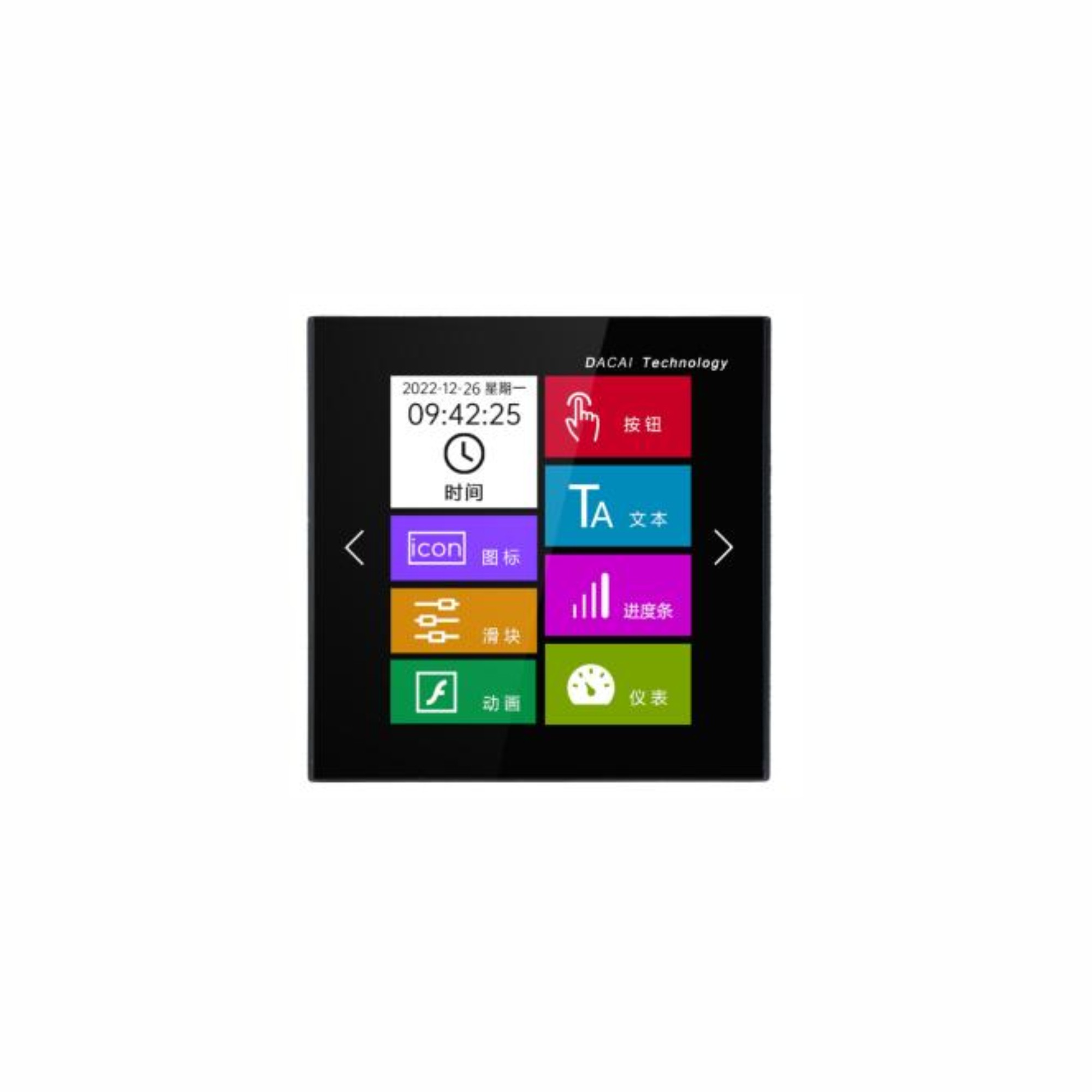

Control Panel OSK-04M

Conference System

Introduction The wall touch panel is an inductive liquid crystal display device that can receive input signals such as contacts. When the graphic button on the screen is touched, the tactile feedback system on the screen can drive various connection devices according to the pre-programmed program. It can be used to replace the mechanical button panel and create vivid audio and video effects through the liquid crystal display screen. The touch screen is a new computer input device. Features 0. It

Conference System

Product Detail

Introduction The wall touch panel is an inductive liquid crystal display device that can receive input signals such as contacts. When the graphic button on the screen is touched, the tactile feedback system on the screen can drive various connection devices according to the pre-programmed program. It can be used to replace the mechanical button panel and create vivid audio and video effects through the liquid crystal display screen. The touch screen is a new computer input device. Features 0. It is a 7.0-inch IoT dual 86-box configuration serial port screen with a resolution of 1024*600;

Industrial-grade standard design, focusing on coolness and IoT, EMI radiation can reach CLASS B medical level;
Adopts 32-bit 400M embedded SOC processor, internally integrated SDRAM, H.264 video hard decoding;
Supports JPEG image compression, RS485/WIFI communication, vector font library, and one-key switching of multiple languages;
The panel adopts compatible brands such as BOE/Innolux/Hancai (depending on market supply, no additional notice will be given);
Supports commonly used configuration controls and LUA scripts, faster image and text refresh, and can realize internal logical operations and custom protocols;
Supports similar Android scrolling and sliding effects; Parameter size: 7.0 inches Resolution: 1024*600 Touch type: capacitive touch screen Capacitive touch mode: single point, sliding touch Installation direction: support 0, 90, 180 and 270 degree rotation installation Display color: 65K color, 16-bit RGB Voltage: 4.5-30V Power consumption: Sleep: 0.7W, backlight brightest, with speaker: 5.0W Communication method: RS485 Communication baud rate: RS485: 1200 ~ 115200bps, typical baud rate: 9600bps Real-time clock (RTC): support countdown, timer, year, month, day and other time display Working temperature: -20 ~ +70℃ Storage temperature: -30 ~ +80℃'

Previous : Rail-mounted relay OS-P8D Next : Control Panel OSK-07M
