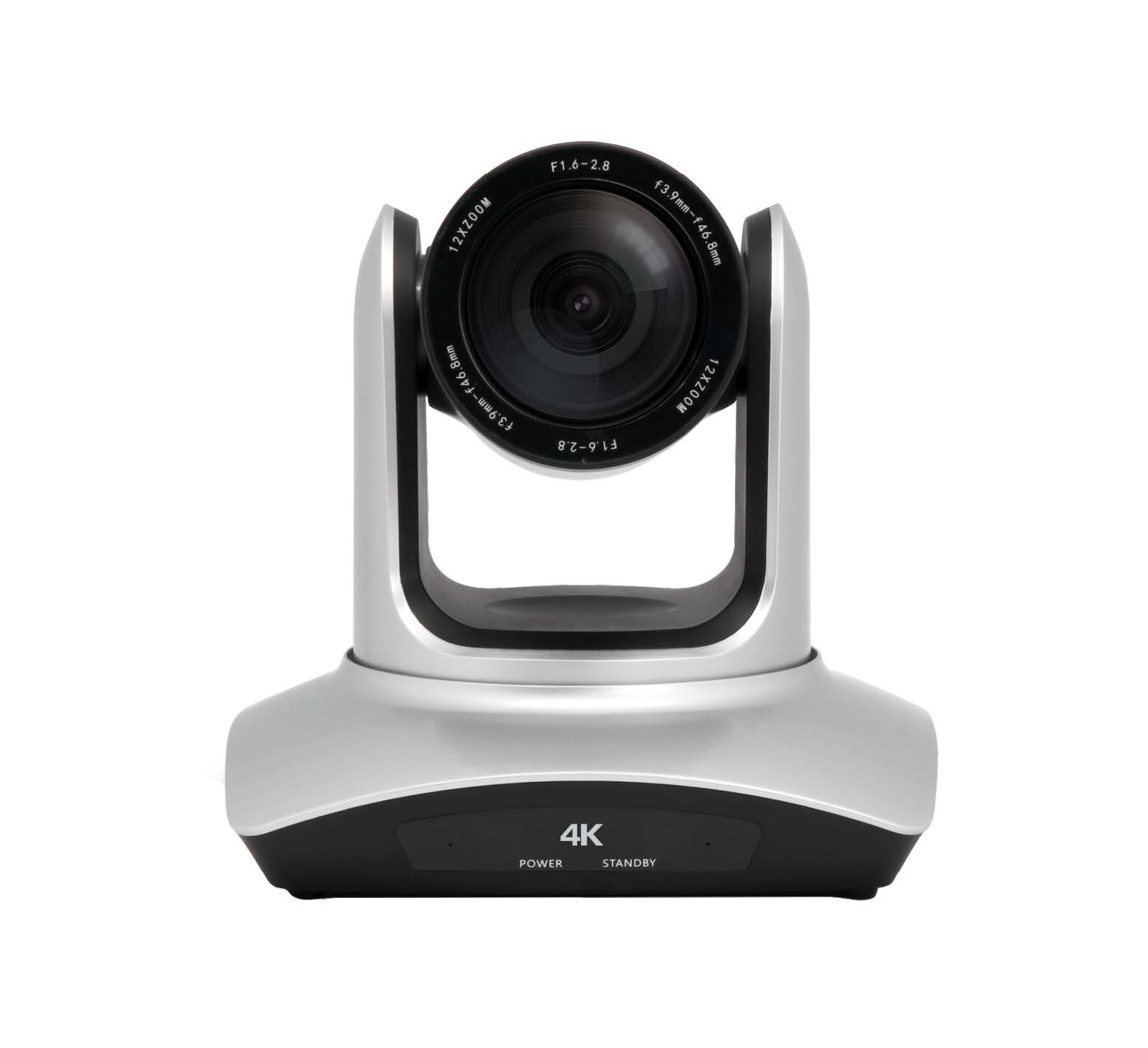

Color Video Conference Camera VC-P420
Conference System Digital Conferencing SolutionsHigh Definition Camera,adopt 1/2.8 inch 8.5 megapixel high quality HD-CMOS sensor,support video signal 4KP30/25、1080P60/50/30/25、1080I30/25、720P60/50/30,video support HDMI, USB3.0, LAN three high-definition video output,supports one RS232 control port (ring) and one 485 control port
Conference System Digital Conferencing Solutions
Features
- 4K Ultra HD PTZ camera;
- Pan 355° , Tilt 120° ;
- The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition;
- Multi function IR remote controller can control PTZ, lens and other function conveniently;
- Using PC to control camera with Sony Visca or Pelco command;
- IR remote controller, RS422, RS232 and other control method;
- 9 preset positions by remote controller, 200 preset positions by PC or remote control unit, memory auto saved when power off;
- The maximum speed of horizontal rotation: 80° /s, tilt: 60° /s;
- Providing multifunctional accurate remote control.
Specifications
Image Sensor | SONY 1/2.8" Progre ssive CMOS |
| Effective Pixels | 8.5Megapixels(16 : 9) |
| Re solution | H DM I: 4KP 30/25, 1080P 60/59.94/50, 1080P 30/29.97 /25, 720P60/50 USB : 3840*2160, 1920*1080, 1280*720, 800*600 , 640*480, 640*360, 320*240 SDI: 1080P60/59.94/50, 1080P 30/29.97/25, 720P60/50 |
| Signal | PAL/NTSC |
| Lens | 12X/20X optical zoom |
| Focal Length | 12X: f=3.9mm(W)~46.8mm(T) 20X: f=5.2mm(W)~104mm(T) |
| Horizontal View Angle | 12X: 72.5°(W)~6.5°(T) 20X: 58.7°(W)~3.2°(T) |
| Focu s System | Auto /Manual |
| Mini mum Illumination | 0.1Lux |
| Exposure Control | Auto/Manual |
| Shutter | 1/1 ~ 1/10000s |
| Gain | Auto/Manual |
| White Balance | Auto /Indoor /Outdoor /Manual |
| Image Effect | Full color/black and white/image flip |
| S /N Ratio | ≥50db |
Pan | 355 °(max.speed:80° /s) |
| Tilt | -30°to +90 °(max .speed:60°/s) |
| Video Output | HDMI、USB3.0、IP |
| Power | 12V DC（10.8 ~ 13.0V DC) |
| Operating Temperature | 0° -40 ° |
| Storage Temperature | -10° ~60 ° |
| Size | (L) 181x(W)181x(H)176mm |
| Weight | 1525g |
| Color | Silvery white |
| Protocol | SONY VISCA、PELCO P/D、VISCA over IP、ONVIF |
| Control Mode | RS-232C、RS-422/485 |
| Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C cable, HD MI cable, USB3.0 cable, Bracket |
