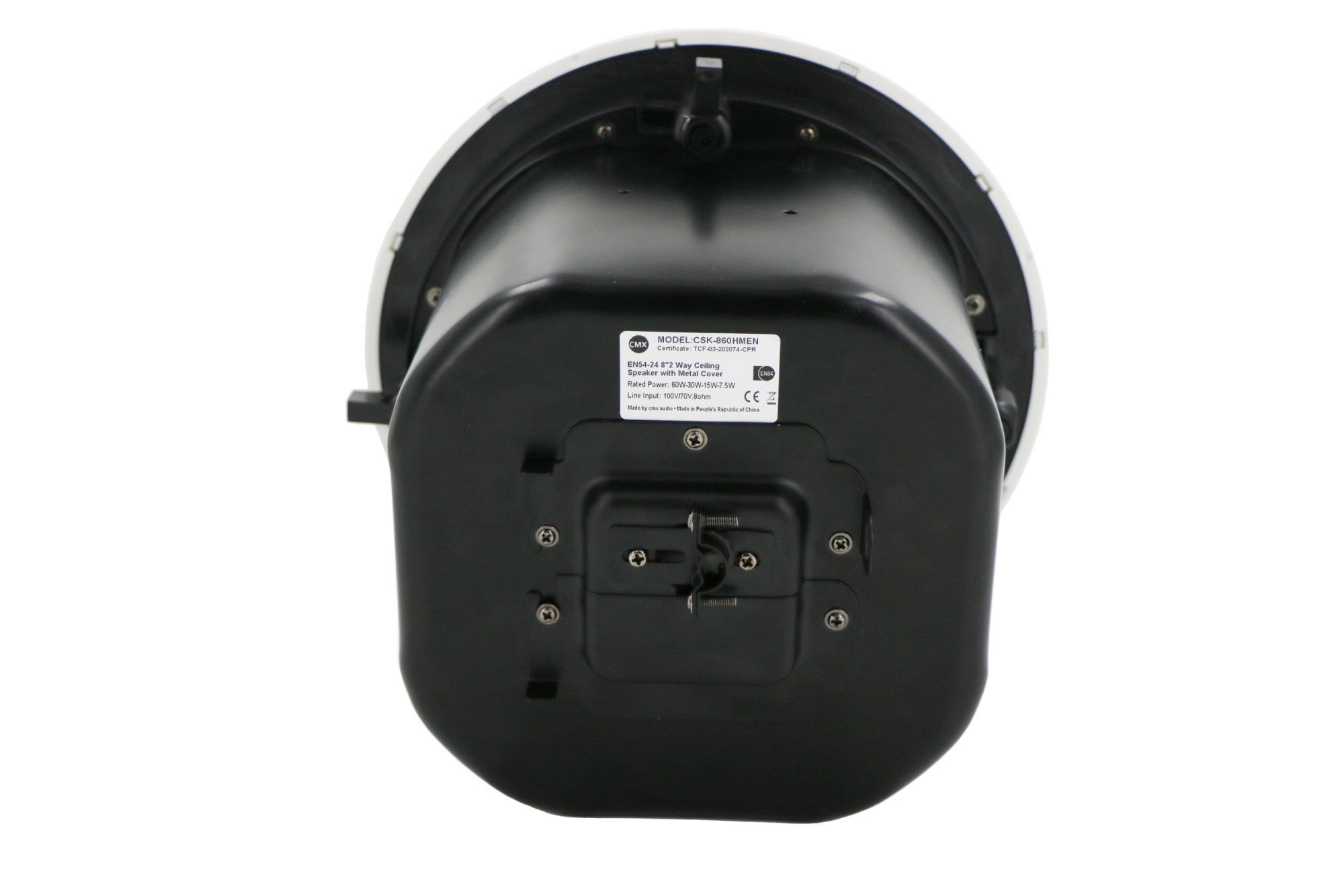

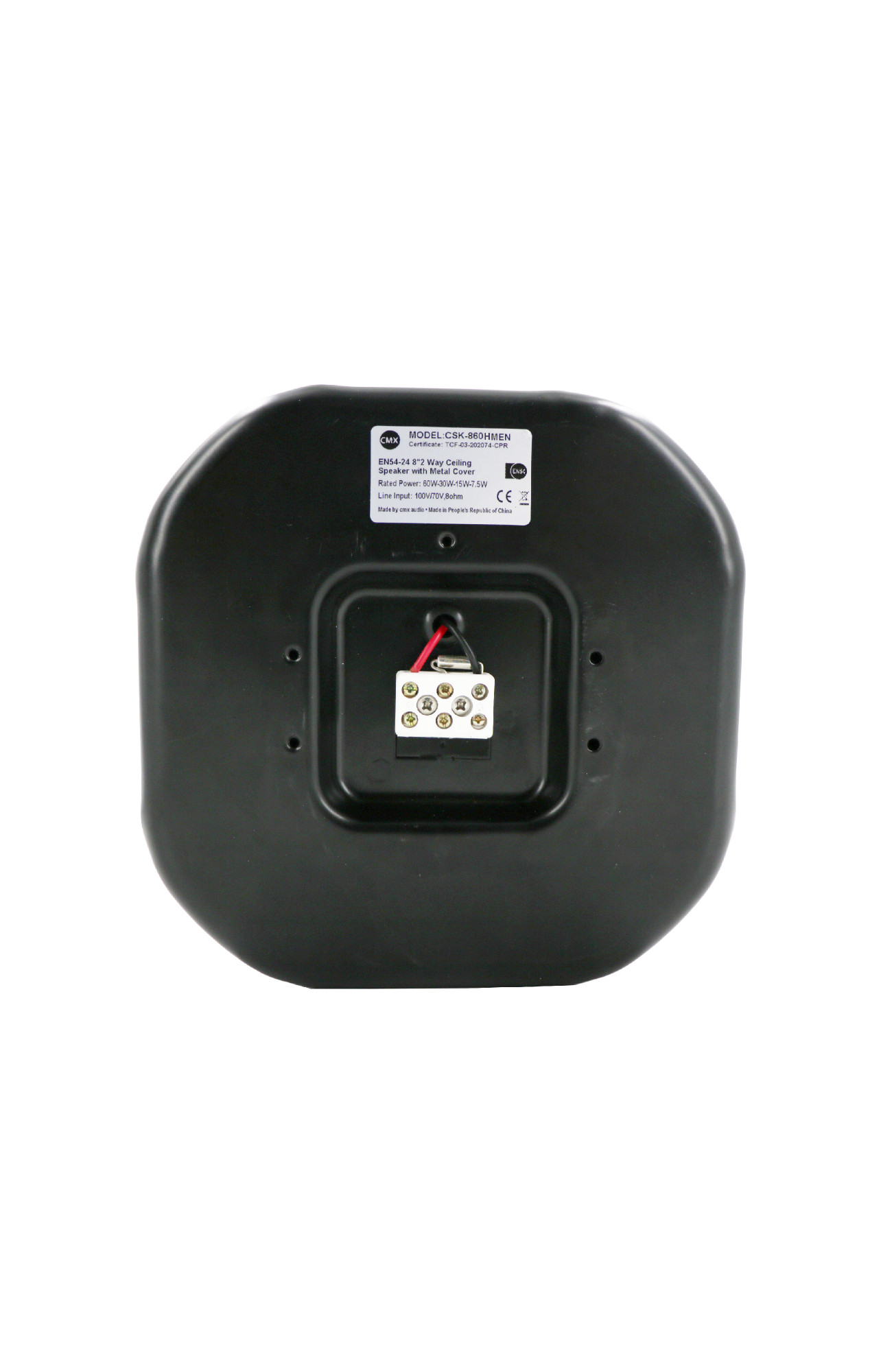

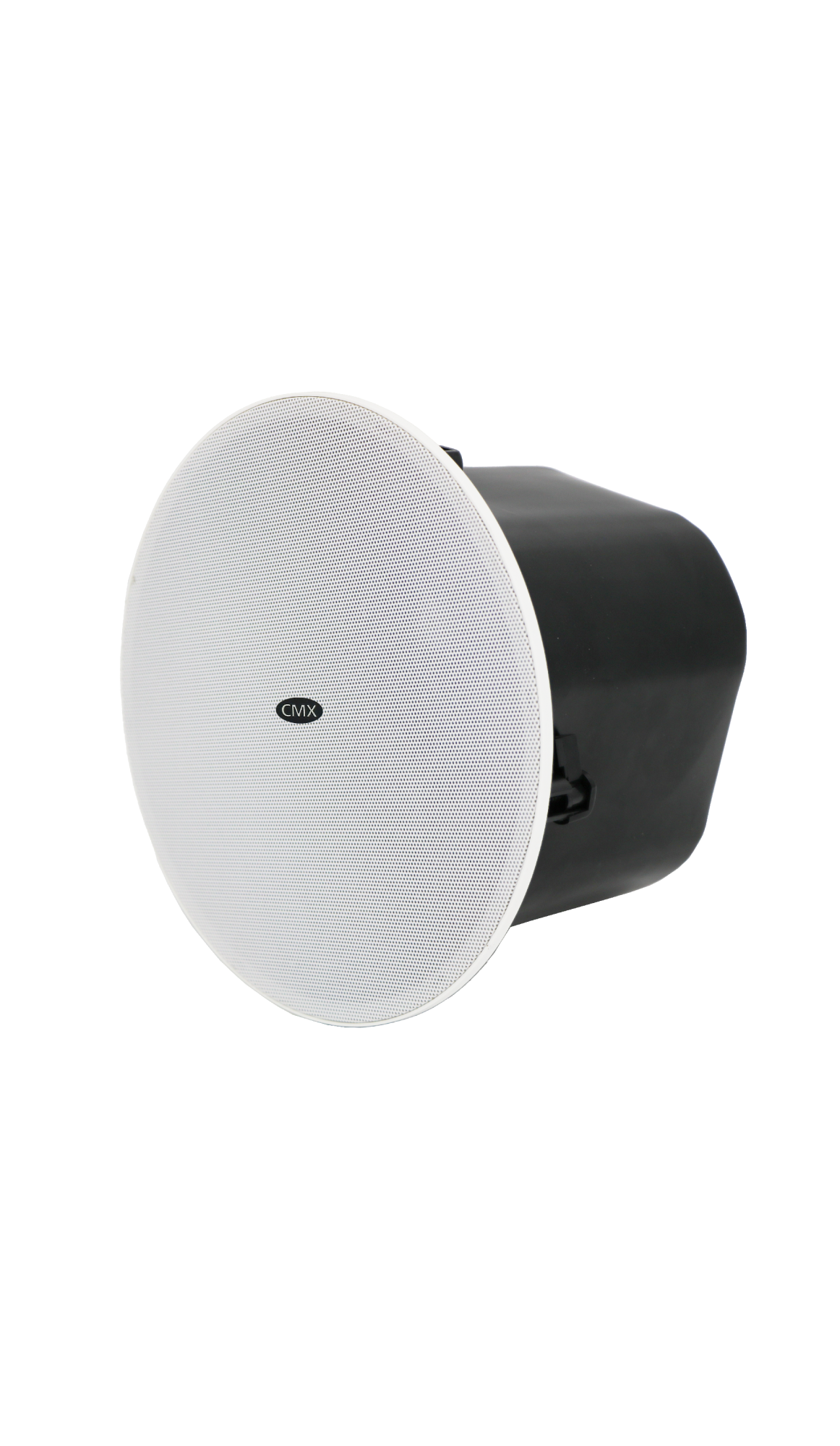

CSK-860HMEN EN54-24 6.5” Two Way Ceiling Speaker with Back Box 100V power taps 60W & 8Ω
100 Volt Speakers Ceiling Speaker Fireproof Speaker EN54 Certified Speakers EN54-24 LoudspeakersCSK-860HMEN is EN54-24 certified ceiling speaker with fire dome, 100V, 7.5W/15W/30W/60W& 8Ω, 6.5", all metal, ceramic connector, thermal fuse and dedicated designed for voice alarm & voice evacuation system use.
100 Volt Speakers Ceiling Speaker Fireproof Speaker EN54 Certified Speakers EN54-24 Loudspeakers
Features:
lCompliant with the EN54-24 standards
lBuilt-in 100v/70v transformer for PA & VA system
l100V power taps 60-30-15-7.5W & 8Ω
l100V transformer and 8Ω both applications
l6.5' woofer and 1” silk teeter two way speaker system
lCeramic connector,metal grille with metal fire dome in black
lFireproof phoenix terminal, thermal fuse, fire dome and fire-resistant cable
lFlush mount in-ceiling quick and secure installation
Specifications:
Model | CSK-860HMEN |
Description | EN54-24 6.5” Two Way Ceiling Speaker with Back Box |
Power Taps 100V | 60-30-15-7.5W & 8Ω |
Sensitivity 1W/1m | 94±3dB |
Frequency Response | 55Hz-20KHz |
Speaker Driver | 8” woofer and 1” silk teeter two way speaker system |
Finish | ABS enclosure, metal grille with fire dome in black |
Mounting Way | In-ceiling spring clip quick installation |
Cutout Size | Ø292mm |
Dimensions | Ø320×245mm |
Weight | 1.6kg |
Previous : CSK-810HCEN EN54-24 8” Ceiling Speaker 10W at 100V
Next : EN54-24 5” Ceiling Speaker FCS-56PCEN 6W-3W-1.5W-0.75 W at 100V
