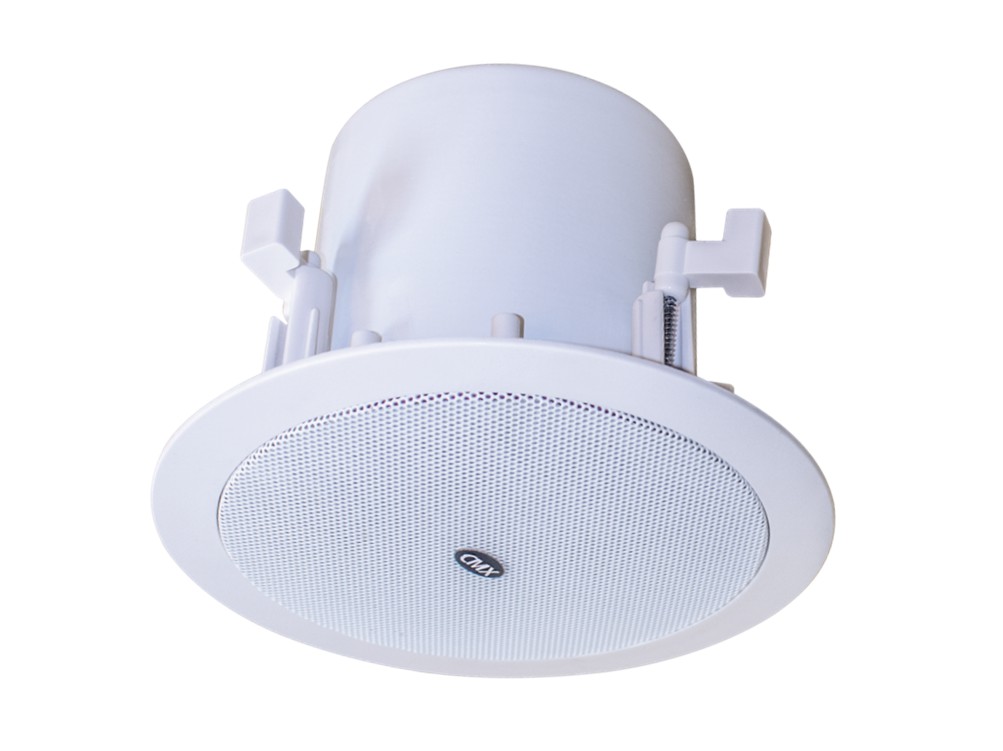

CSK-630KEN EN54-24 Ceiling Speaker，6.5" 30W 100V
EN54 Certified Speakers EN54-24 LoudspeakersCSK-630KEN is EN54-24 certified ceiling speaker with fire dome, 100V, 7.5W/15W/30W, 6.5 inch coaxial speaker, Euro phoenix connector, thermal fuse and fire-resistant cable dedicated designed for voice alarm & voice evacuation system use.
EN54 Certified Speakers EN54-24 Loudspeakers
Feature:
Compliant with the EN54-24 standards fireproof ceiling speaker
Built-in 100v/70v transformer for PA & VA system
100V power taps 30-15-7.5-3.8W & 8Ω
100V transformer and 8Ω both applications
6.5' woofer and 1” Mylar teeter two way speaker system
ABS enclosure, metal grille with fire dome in white
Flush mount in-ceiling quick and secure installation
Fireproof phoenix terminal, thermal fuse, fire dome and fire-resistant cable

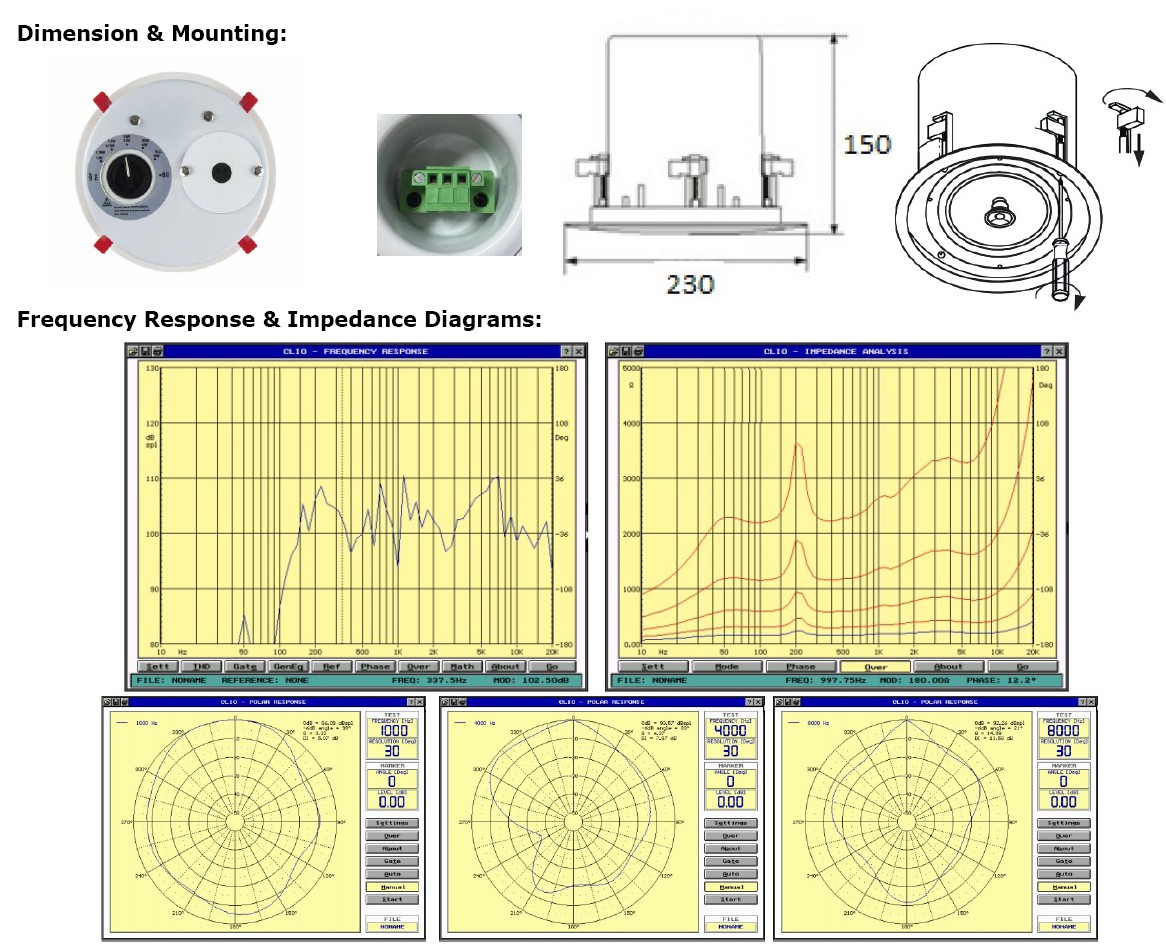

Specification:
Model | CSK-630KEN |
Description | EN54-24 Ceiling Speaker |
100V Power Taps | 30-15-7.5-3.8W & 8Ω |
Frequency Response | 100-20K Hz |
SPL(@1W/m) | 88±3dB |
Speaker Unit | 6.5' woofer and 1” Mylar teeter two way |
Cutout Size | Ø 200mm |
Dimension | Ø 230×150mm |
Material | ABS enclosure, metal grill with fire dome in white |
Weight | 2.2kg |
