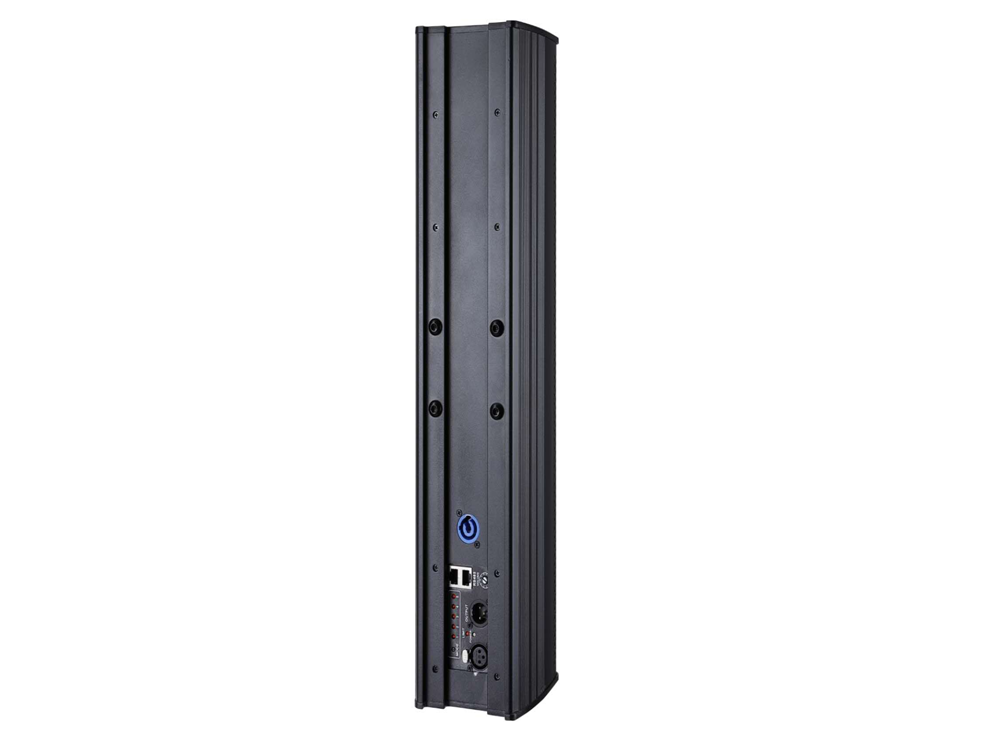

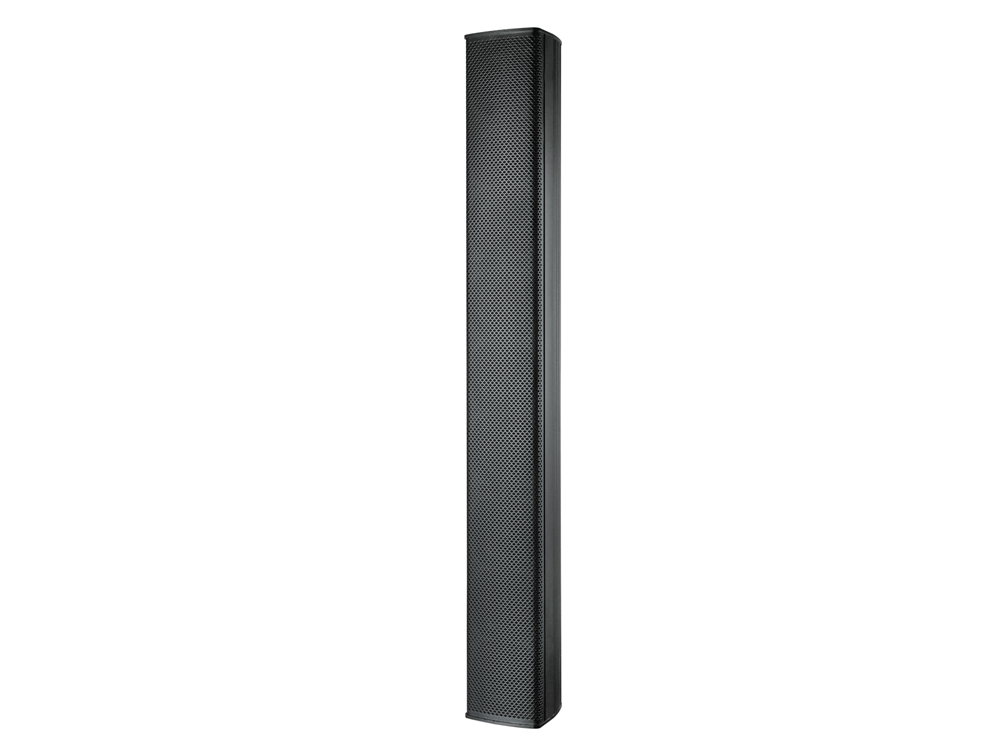

Active Line Array Speaker LAS-804A 480 Watts/Max 1000 Watts
Professional Sound Pro Louspeakers Professional Loudspeakers Installation Loudspeakers Active SpeakerLAS-804A is one active line array column speaker 480 Watts/Max 1000 Watts, 8 units 4 inch driver units, built-in amplifier for professional sound system and sound reinforcement system in meeting room and stadium sound system, hi-fi sound quality, even distribution sound speaker system.
Professional Sound Pro Louspeakers Professional Loudspeakers Installation Loudspeakers Active Speaker
Descriptions:
The active line array speaker LAS-804A is built-in DSP and class-D Amplifier, which is true line array technology, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The active line array column speaker system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.
Features:
- High-end line array column loudspeaker with a frequency response of 100Hz to 20kHz
- Compact active line array column loudspeakers
- Built-in power high efficiency 85% class-D amplifier
- Built-in DSP processor and control software
- DSP processor includes gain control, EQ, delay, limiter, reverb, echo, X-over, compressor and phase etc
- 8x 4.5' full range speakers Neodymium magnet
- 1 x Euroblock connectors for power supply
- 2 x XLR connectors for input or link
- 2 x RJ45 for DSP control & RS485
- RMS power 480W Max 1000W
- Improved dispersion of horizontal 150 ° & vertical 15°
- Design and elegance for easy integration even in the most demanding installations
- Compact dimensions ensure listeners will focus on the sound and not the speaker
- Weatherproof IP54 for indoor & outdoor applications
- Mounting bracket L3A purchased separately
Specifications:
Model | LAS-804A |
RMS Power | 480 Watts/Max 1000 Watts |
Built-in Amplifier | 350+350 Watts RMS, Class-D, 85% efficiency |
Sensitivity | 100dB 1W/1m |
MAX SPL | 130/136dB (Bi-Amp) |
Nominal Impedance | 8 Ω |
Speaker | 8 x 4.5' full range speakers Neodymium magnet |
IP Rate | IP54 |
Crossover Frequency | 3K Hz |
Horizontal Dispersion | 150 ° |
Vertical Dispersion | 15° |
High Filter Pass | 100Hz, -24dB |
Connector | 1 x Euroblock connectors for power supply, 2 x XLR connectors for input or link 2 x RJ45 for DSP control & RS485 |
DSP Processor | Gain control, EQ, delay, limiter, reverb, echo, X-over, compressor and phase etc |
Dimension | 132x1100x125 |
Weight | 11.4kg |
Previous : Active Line Array Column Loudspeakers LAS-404A 240-500W
Next : Line Array Column Speaker LAS-904 450 Watts/Max 1000 Watts
