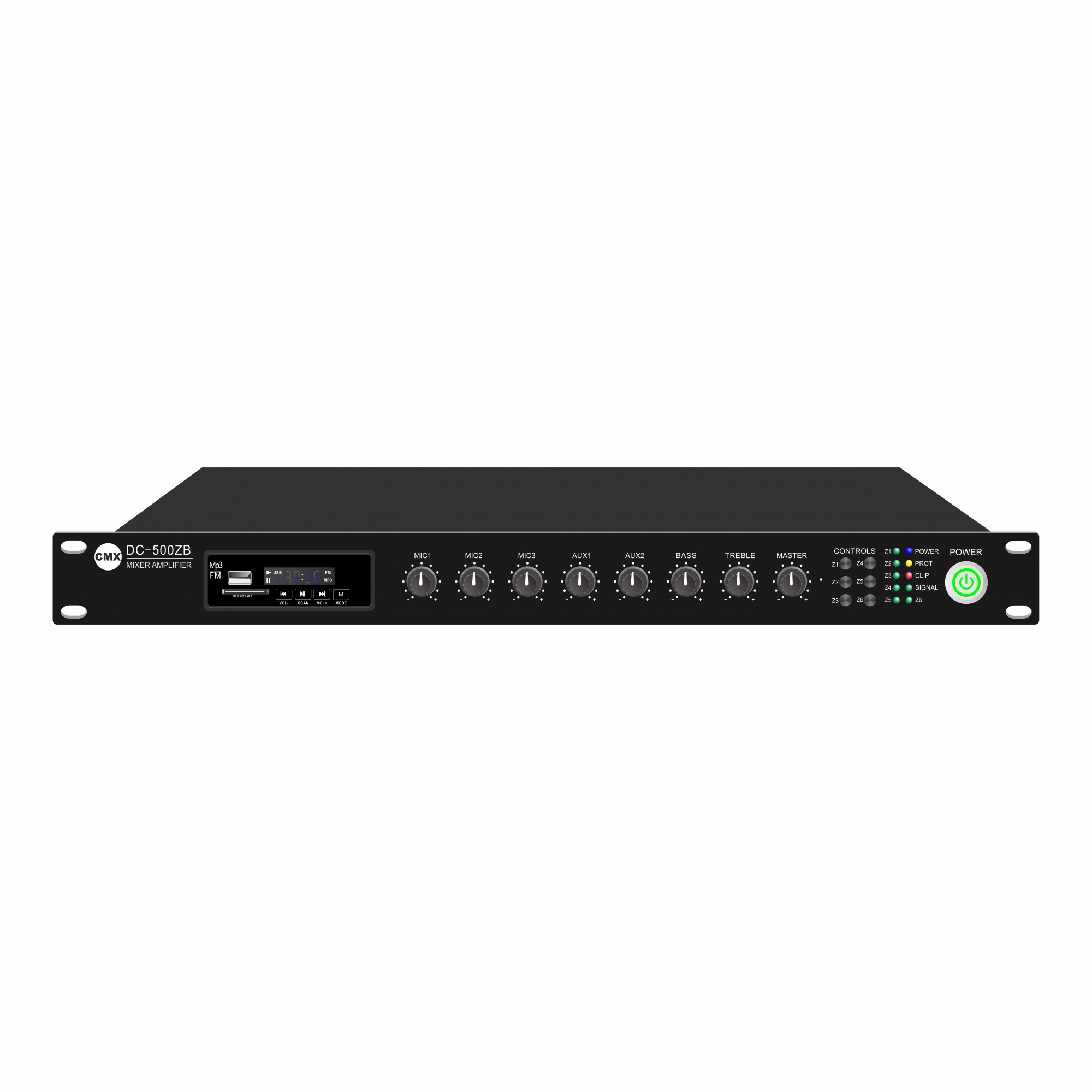

6 Zone Mixer Amplifier with USB/SD/FM/Bluetooth DC-120ZB/DC-240ZB/DC-350ZB/DC-500ZB
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers6 Zone Mixer Amplifier with USB/SD/FM/Bluetooth DC-120ZB/DC-240ZB/DC-350ZB/DC-500ZB，Rate power output at 120W, 240W, 350W to 500W，Speaker output of 100V & 4 Ohm-16 Ohm
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers
Features:
- Compact 1U size public address amplifier
- Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
- Rate power output at 120W, 240W, 350W to 500W
- Support 6 zone outputs,each zone has a separate key and level indication
- Speaker output of 100V & 4 Ohm-16 Ohm
- Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and Bluetooth
- LED indicators for signal, po w e r , c l i p a n d protect
- Dip off, Priority MUTE>EMC>MIC1>MIC2, MIC 3>Others
- Dip 1 on, Priority MUTE>EMC>MIC1, MIC2, MIC 3>Others
- Mic1-3 switchable inputs unbalanced 6.3mm jack
- Aux 1-2 input of RCA input and one EMC in and one output by RCA
- Volume control for Mic1-3, Aux1-2, bass/treble and master
- Complete amplifier protection includes short-circuit, clip, overload and high temp
- AC110V-230V switchable power supply system and 24V DC in
Specification:
Model
| DC-120ZB | DC-240ZB | DC-350ZB | DC-500ZB |
| Description | 6 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth | |||
| Rated Power Output | 120W | 240W | 350W | 500W |
| Speaker Outputs | 100V & 4 -16 Ohm | |||
| Connector | MIC switchable input 1-3 balanced phoenix terminal MIC 1 with phantom power,switch controlled by Dip 2 AUX 1-2 inputs by RCA; EMC in and 1 output by RCA | |||
| Priority | Dip off, Priority MUTE>EMC>MIC1>MIC2, MIC 3>Others; Dip 1 on, Priority MUTE>EMC>MIC1,MIC2,MIC 3>Others; | |||
| Input | Mic1-3: 25mV±5%, AXU1-2:200mv±5%; EMC:421mv±5% | |||
| Input level, impedance | AUX：10KΩ /MIC：1KΩ | |||
| Frequency Response | 50 Hz-20 kHz | |||
| S/N Ratio | >85dB | |||
| THD | ＜ 0.1% | |||
| Protection | Short-circuit, clip, overload and high temp protection | |||
| Power Consumption | 200W | 400W | 500W | 650W |
| Power Supply | AC110-230V; 50-60Hz, DC 24V | |||
| Dimension | 484 × 370 × 45 mm | |||
| Weight | 5.1kg | 5.1kg | 5.2kg | 5.2kg |
