6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth DA-60MT/DA-120MT/DA-240MT/DA-350MT/DA-500MT
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Zone Paging6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth DA-60MT/DA-120MT/DA-240MT/DA-350MT/DA-500MT series 6 zone mixer amplifier with ATT/Mp3/USB/FM/Bluetooth, its power output from 60W to 120W to 500W. It support 4 microphone inputs and 2 line inputs plus 6 remote zone paging microphones, its 6 zone output with separate volume control.
Mixer Amplifiers Bluetooth Amplifiers Mp3 Amplifiers PA Amplifiers 100V 70V Amplifiers Zone Paging
Description:
The PA 6 Zone Mixer Amplifier with MP3/USB/FM tuner/Bluetooth, its rated power output from 60W, 120W, 240W, 350W to 500W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with three sources, pre amplifier and mixer power amplifier into one 19” 2U height unit, which is economy but of high reliable performance. It integrates 3 audio sources into a mixer amplifier, plus Mic1(6.3mm) and Mic/Line input 2-4 (XLR), two line inputs, one EMC input and one RJ45 input for 6 zone remote paging microphone. Mic1 VOX with highest priority except EMC input. One USB and one SD slots on front provide easy access and operation for installer and end-user. The amplifier is design with complete protection of overload, short circuit and high temp to avoid any damage. These amplifiers are suitable for applications in bank, mosque, school, hotel, restaurant, theme centers and shopping center.
Features:
- Public address (PA) 6 zone commercial mixer power amplifier
- 19” rack mount amplifier of 2U height
- Rated outputs of 60W, 120W, 240W, 350W to 500W
- 6 zone speaker outputs of 100V
- Single zone 100V/70V/4-16 Ohm speaker outputs
- Six zone speaker outputs with independent volume control
- Built-in media player with MP3/USB/FM tuner/Bluetooth
- Mic1 input 6.3mm jack with VOX highest priority
- Mic/Line input 2-4 balanced XLR with mic/line switch and +48V phantom power selector
- Line 4-5 inputs on rear panel by RCA
- EMC input by RCA on rear panel with secondary priority except MIC1
- One amplifier capacity of 6 remote paging microphones DA-500RM up to 300 meters
- Volume control for Mic1-4 and line 1-2, bass/treble/master and 6 zone volume control on front panel
- Visual indicators include AC and DC Power, protection, clip, 6 zone status and output level meters
- Complete amplifier protection includes overload, clip, short circuit and high temp protection
- 230V AC and 24V DC operation system

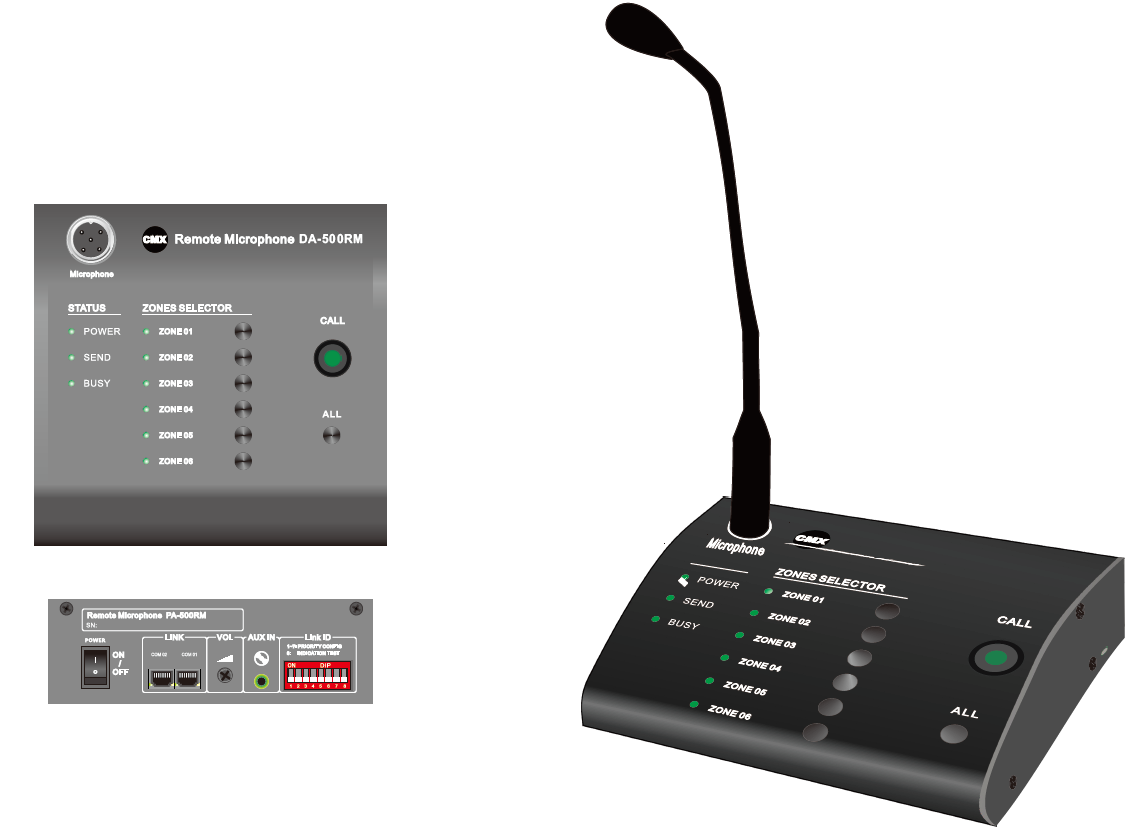

Remote Paging Microphone DA-500RM:
- Communication through CAT6 cable up to 200 meters
- Direct power supply from zone amplifier DA-500MT
- 6 speaker zone individual, group or all zone paging
- Up to 6 Mics working simultaneously loop connection
Specification:
Model | DA-60MT | DA-120MT | DA-240MT | DA-350MT | DA-500MT |
Description | 6 Zone Mixer Amplifier with MP3/USB/FM tuner/Bluetooth | ||||
Rated Power Output | 60W | 120W | 240W | 350W | 500W |
Speaker Output | 6 zone speaker outputs of 100V Single zone 100V/70V/4-16 Ohm speaker outputs | ||||
Input | Mic1-4: 2.5mV, Mic1 of 6.3mm jack, Mic/line 2-4 of balanced XLR Line1-2: 250mV, RCA EMC: 250mV , RCA | ||||
Frequency Response | 80-16KHz | ||||
THD | <0.1% | ||||
S/N Ratio | >70dB | ||||
Protection | High temp, short circuit, clip & overload protection | ||||
Power Supply | 230V AC & 24V DC, 50-60Hz | ||||
Power Consumption | 100W | 200W | 400W | 500W | 650W |
Dimension | 484×405×88mm | ||||
Weight | 9.0Kg | 9.2kg | 9.4kg | 10.2kg | 10.4kg |
