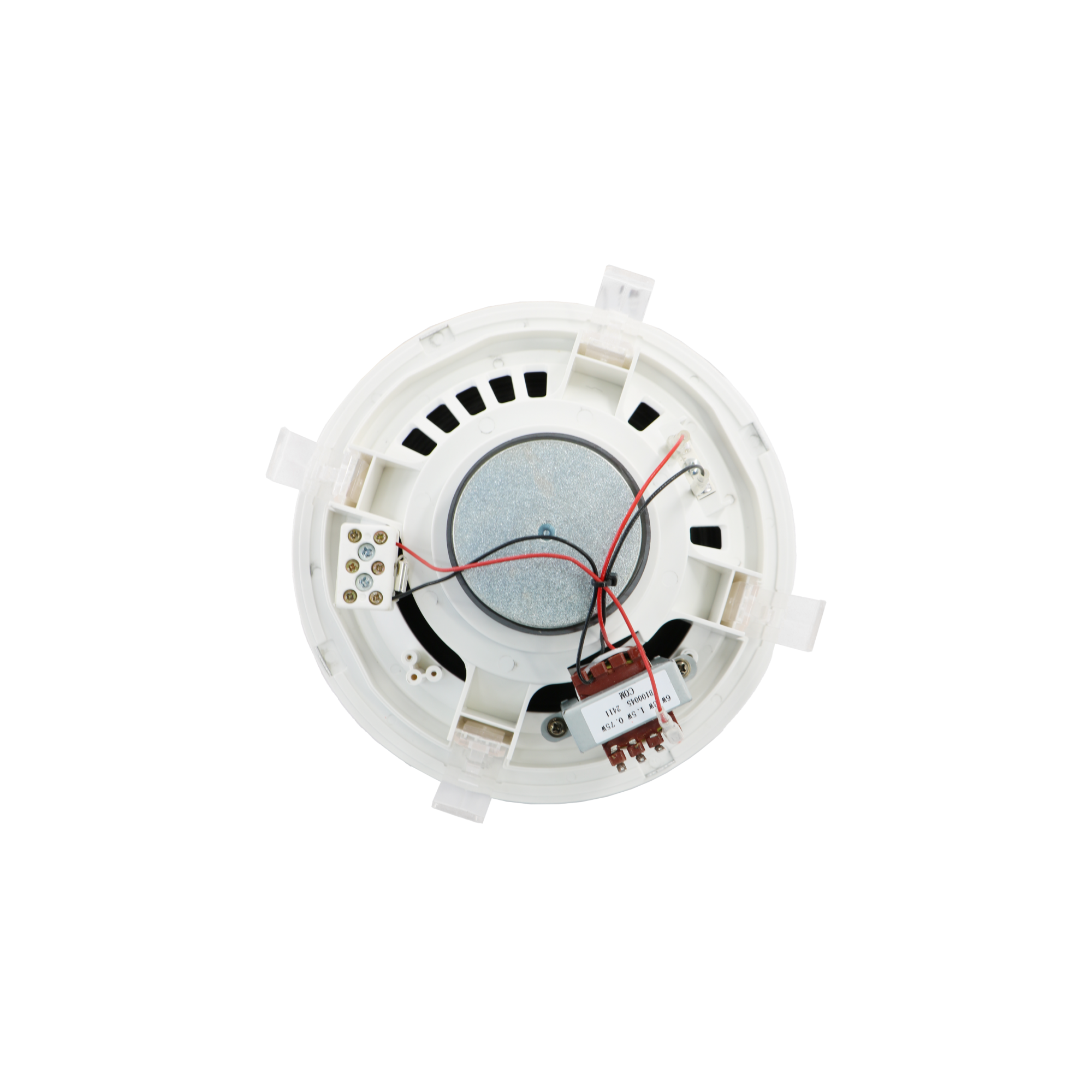

6” Ceiling Speaker With Back Box CSK-66PC
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker6” Ceiling Speaker With Back Box CSK-66PC,Rated power output 6W-3W at 100V/70V,6" dual cone speaker unit,ABS enclosure,metal grille in white and with ABS back box
PA Speakers 100V 70V Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- Built-in 100v/70v transformer for PA & VA system
- Commercial ceiling speaker with transformer
- Rated power output 6W-3W at 100V/70V
- 6' dual cone speaker unit
- ABS enclosure,metal grille in white and with ABS back box
Specifications:
Model | CSK-66PC |
| Description | 6” Ceiling Speaker with back Box |
| Power Taps | 100V 6W-3W |
| Sensitivity | 1W/1m 92±2dB |
| Frequency Response | 100-16KHz |
| Speaker Driver | 6”dual cone speaker unit |
| Finish | ABS enclosure,back box and metal grille in white |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø180mm |
| Dimensions | Ø202.5×104mm |
| Weight | 0.6kg |
Frequency Response and Impedance Diagram:
