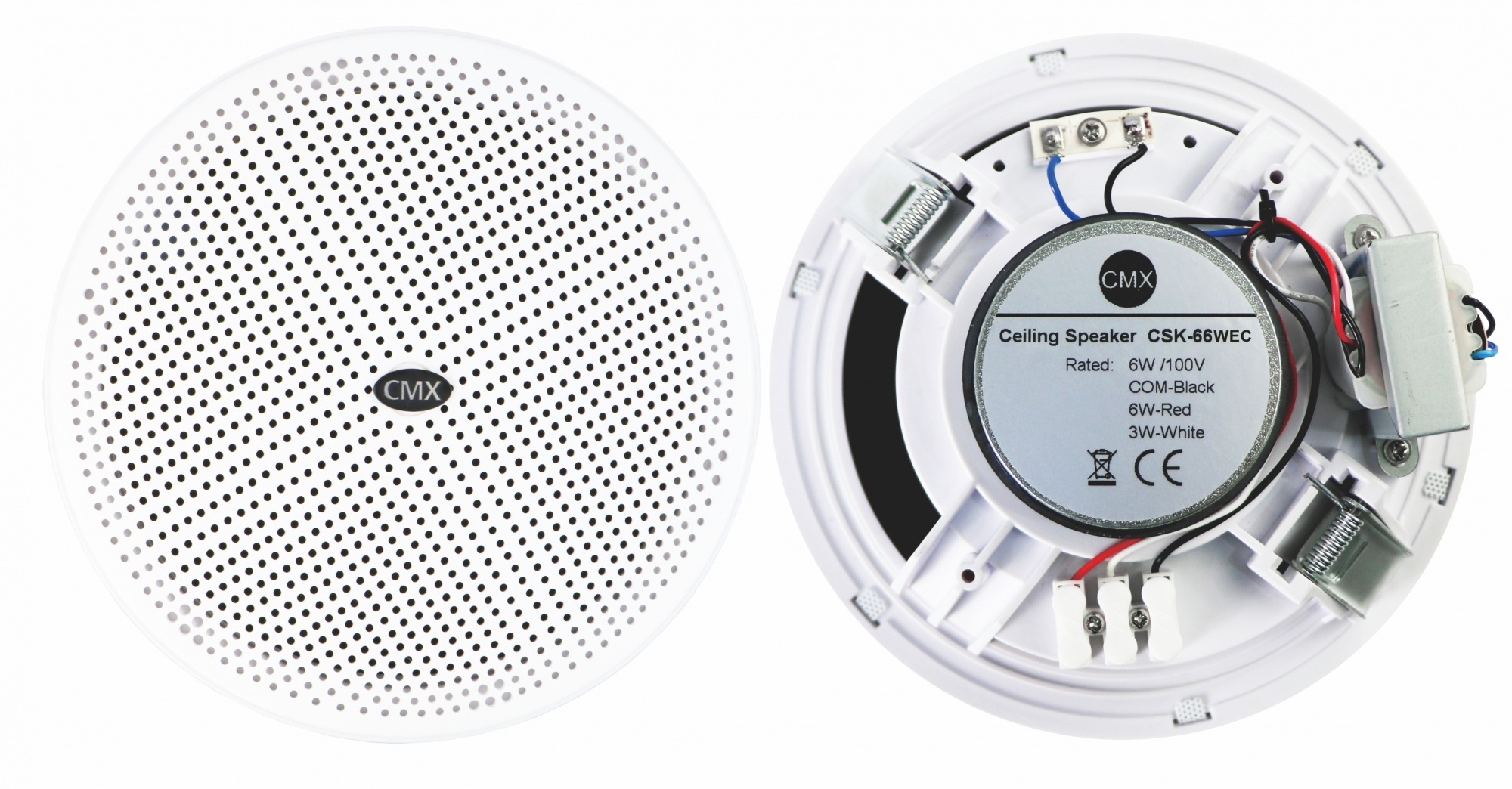

6.5” Waterproof Ceiling Speaker CSK-66WE
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker Waterproof SpeakerCSK-66WE is one cost effective waterproof ceiling speaker, 6.5" full range, 100V transformer with 6W/3W power tapping, ideal for background music system and commercial audio solutions.
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker Waterproof Speaker
Features:
- Commercial ceiling speaker with 100V transformer
- Built-in 100v/70v transformer for PA & VA system
- Rated power output 6W-3W at 100V
- 6.5' full range paper driver unit
- IP55 waterproof rate
- ABS enclosure,metal grille in white
- In-ceiling quick installation by spring clip
Specifications:
Model | CSK-66WE |
| Description | 6.5” Waterproof Ceiling Speaker |
| Power Taps 100V | 3W-6W |
| Sensitivity 1W/1m | 93±3dB |
| Frequency Response | 100-15KHz |
| Speaker Driver | 6.5” full range paper driver |
| IP Rate | IP55 |
| Finish | ABS enclosure,metal grille in white |
| Mounting Way | In-ceiling spring clip quick installation |
| Cutout Size | Ø170mm |
| Dimensions | Ø186×71mm |
| Weight | 520g |
Installation & Wiring diagram:

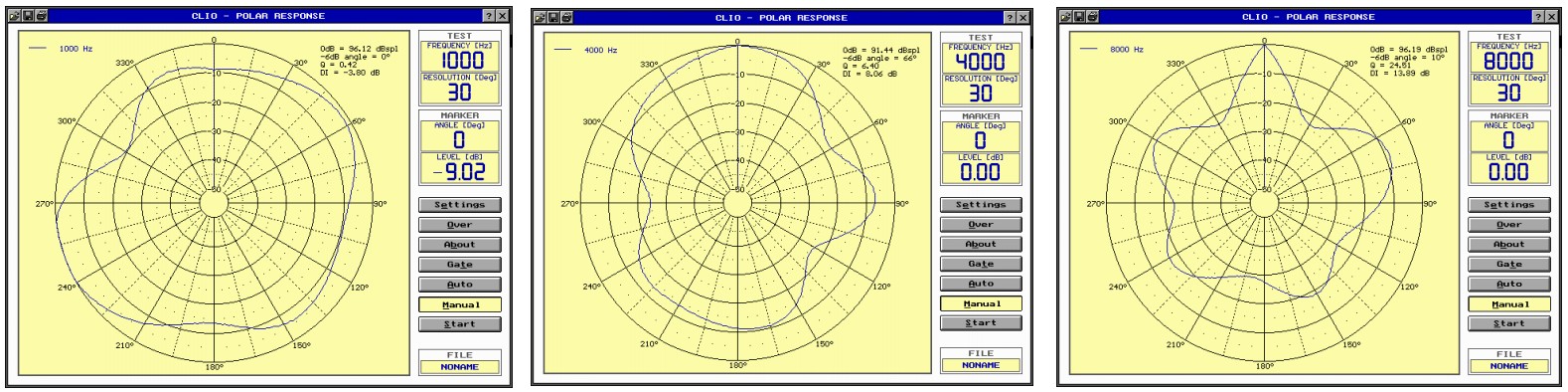

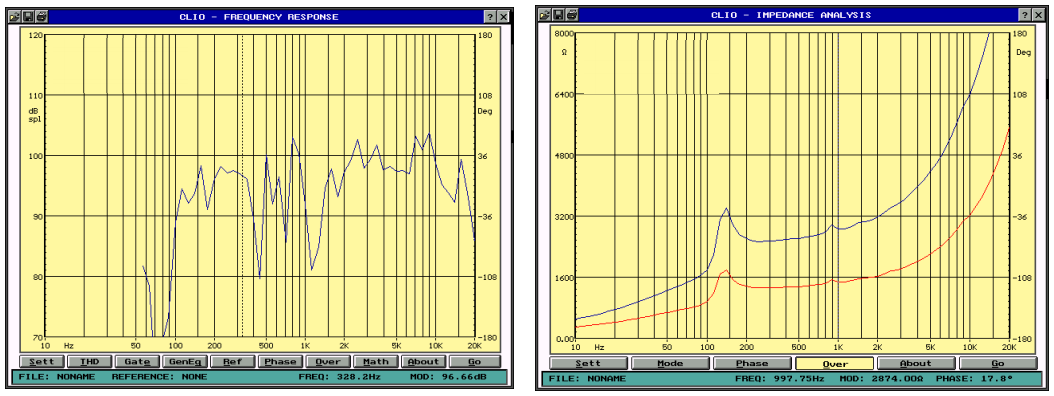

Frequency Response and Impedance Diagram:
Previous : 6.5” Waterproof Ceiling Speaker with Back Can CSK-66WEC
Next : 4” Two Way Frameless Ceiling Speaker with Fire Dome CSK-430HM
