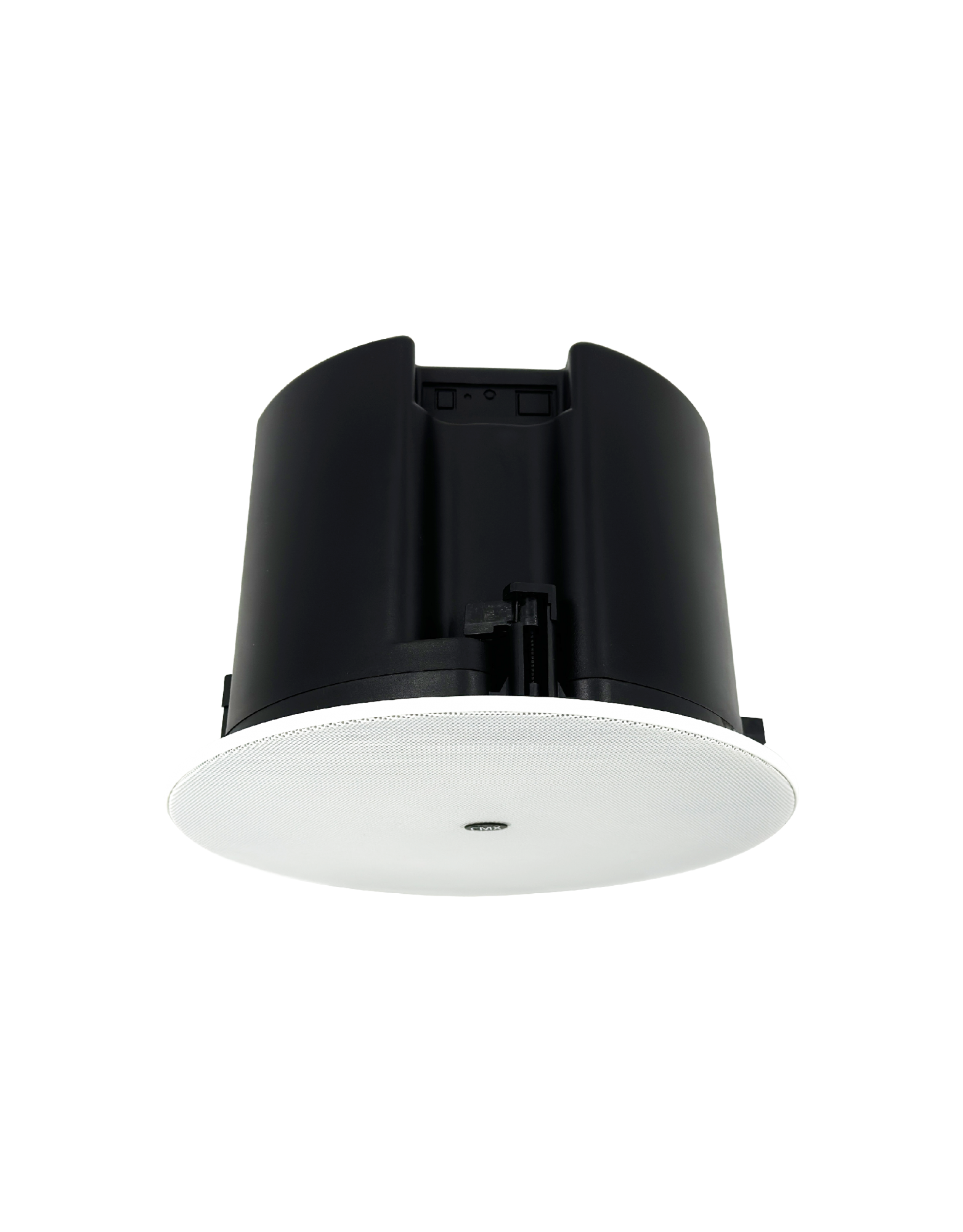

6.5” 2-Way Ceiling Speaker CSK-840HQM
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerHigh grade slim line 2-way ceiling speaker，100V/70V line ceiling speaker with transformer & ABS back can，Power taps of 40W-20W-10W-5W & 8 Ohm
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- High grade slim line 2-way ceiling speaker
- 100V/70V line ceiling speaker with transformer & ABS back can
- Hi-flex polypropylene cone main driver for extended low frequency response
- Built-in crossover for clear tweeter and heavy performance bass
- 6.5” hi-flex polypropylene bass speaker with separate high performance 1.5” tweeter
- Power taps of 40W-20W-10W-5W & 8 Ohm
- Magnetic frameless grille & ABS baffle & ABS fire dome
- With dual breathing holes for superior heavy duty bass performance
- Flush mount easy and secure installation
- Exclusive grill design allows true frameless speakers
Specifications:
Model | CSK-840HQM |
| Description | 6.5” 2-Way Ceiling Speaker |
| Power Output | 40W/80W Max 8 Ohms |
| Power Taps | 40W-20W-10W-5W & 8 Ohm |
| Sensitivity 1W/1m | 96dB |
| MAX SPL | 121dB |
| Frequency Response | 60-20KHz |
| Radiation Angle | 150° |
| Finish | Baffle: ABS, black; Grille: magnetic steel, white, ABS fire dome |
| Speaker Driver | 6.5' bass+1.5' tweeter two way system |
| Cutout Size | Ø243mm |
| Dimensions | Ø284.3×192mm |
| Weight | 2.75Kg |
Side & Rear View:
Impedance &Frequency Response VS SPL Diagrams:
