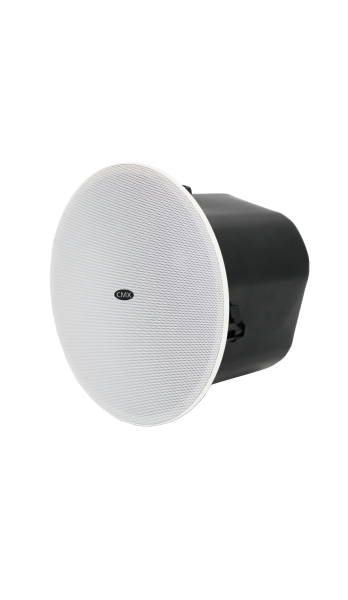

5” Two Way Frameless Ceiling Speaker with Fire Dome CSK-540HM
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS SpeakerCommercial ceiling speaker with 100V/70V transformer.Built-in 100V/70V transformer for PA & VA system.100V power taps 40-20-10-5W & 8Ω.100V power taps selector on front panel.100V/70V transformer and 8Ω both applications.5" woofer and 1.5” silk teeter coaxial speaker system.ABS enclosure and metal grille in white with black metal fire dome.4 Dog ears flush mount in-ceiling quick and secure installation.
PA Speakers 100V 70V Speakers Commercial Speakers 100 Volt Speakers BGM Speakers Ceiling Speaker ABS Speaker
Features:
- Commercial ceiling speaker with 100V/70V transformer.
- Built-in 100V/70V transformer for PA & VA system.
- 100V power taps 40-20-10-5W & 8Ω.
- 100V power taps selector on front panel.
- 100V/70V transformer and 8Ω both applications.
- 5' woofer and 1.5” silk teeter coaxial speaker system.
- ABS enclosure and metal grille in white with black metal fire dome.
- 4 Dog ears flush mount in-ceiling quick and secure installation.
Specifications:
| Model | CSK-540HM |
| Description | 5” Two Way Frameless Ceiling Speaker with Fire Dome |
| Power Taps 100V | 40-20-10-5W & 8Ω |
| Sensitivity 1W/1m | 92±2dB |
| Frequency Response | 80Hz-20KHz |
| Speaker Driver | 5” woofer and 1.5” silk teeter coaxial speaker system |
| Finish | ABS enclosure and metal grille in white with black metal fire dome |
| Mounting Way | 4 Dog ears flush mount in-ceiling quick and secure installation |
| Cutout Size | Ø205mm |
| Dimensions | Ø235×210mm |
| Weight | 3.0kg |

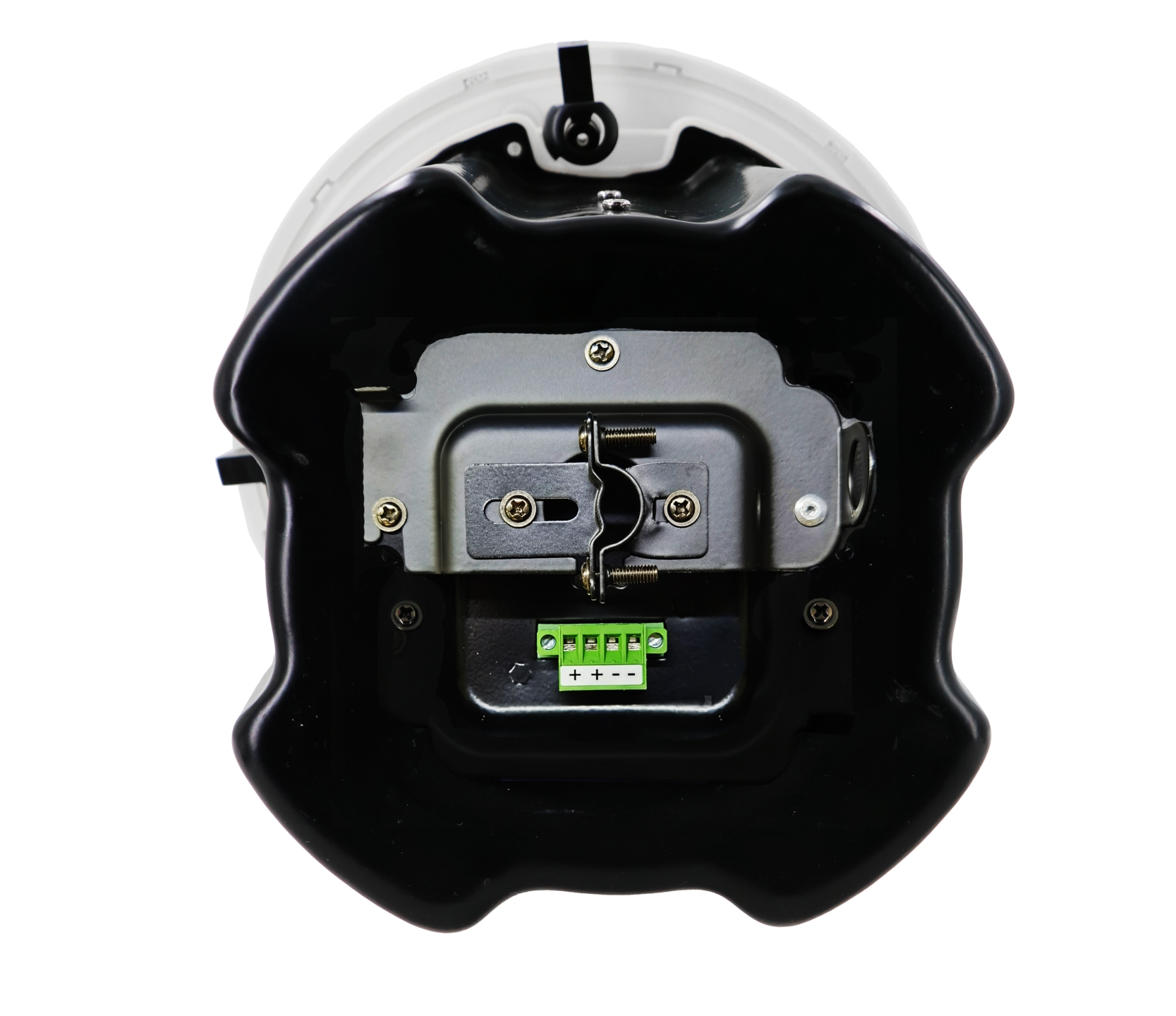

Installation & Wiring diagram:
Frequency Response and Impedance Diagram:
Previous : 4” Two Way Frameless Ceiling Speaker with Fire Dome CSK-430HM
Next : 6.5” Two Way Frameless Ceiling Speaker with Fire Dome CSK-860HM
