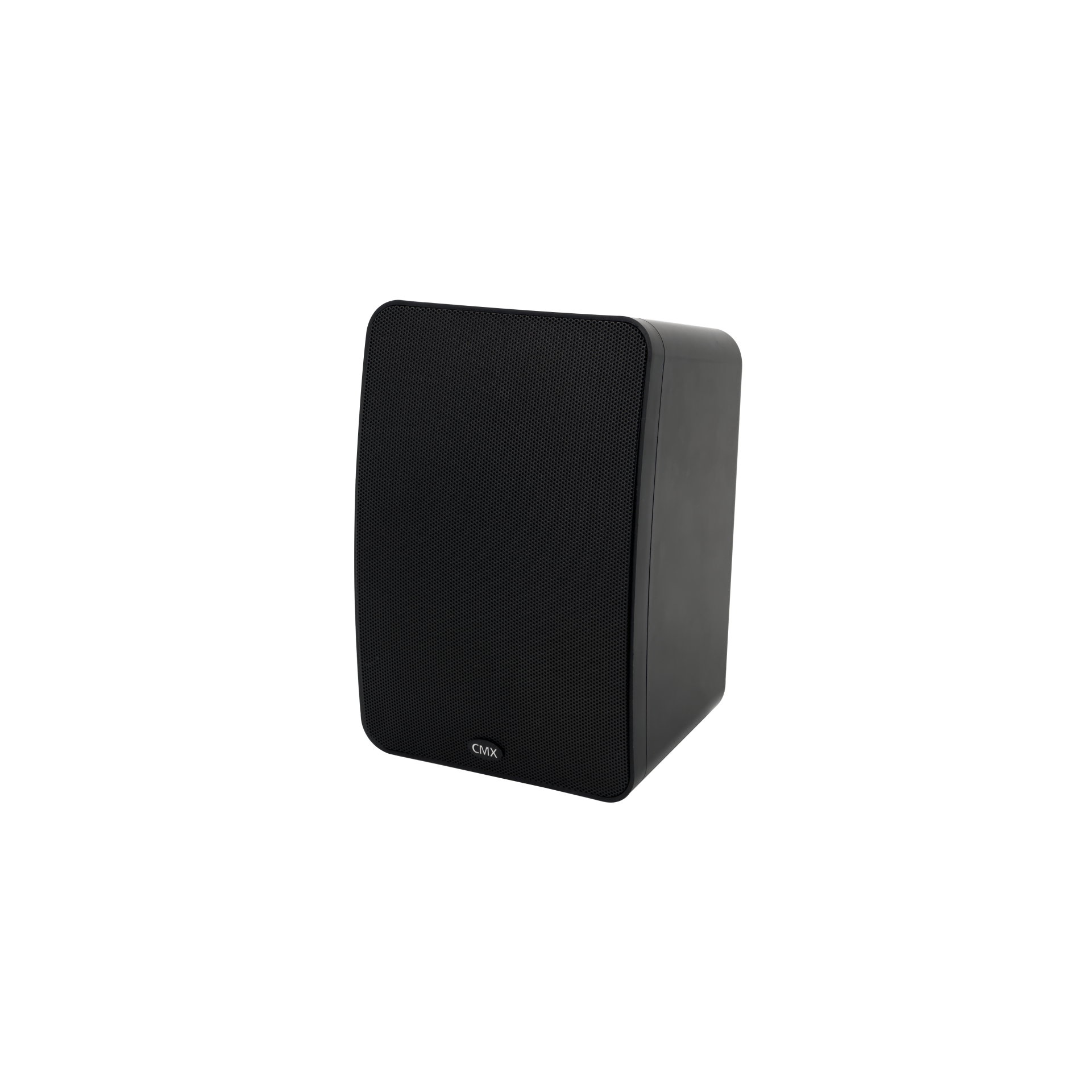

5.25" 2-Way Wall Mount Speaker WSK-523S
100V 70V Speakers BGM Speakers 2-Way Speakers Wall Mount SpeakerWSK-523S is outdoor 5.25" 2-Way Wall Mount Speaker with 100V/70V power tapping, 30W/15W,Ideal for school, office, hotel and airport background music system
100V 70V Speakers BGM Speakers 2-Way Speakers Wall Mount Speaker
Feature:
- Commercial public address speaker with 100V/70V transformer
- Ideal for school, office, hotel and airport background music system
- Power output 30-15-7.5-3.75W & 8Ω
- 5.25' paper dual cone speaker unit
- ABS enclosure, waterproof finish metal grille in black

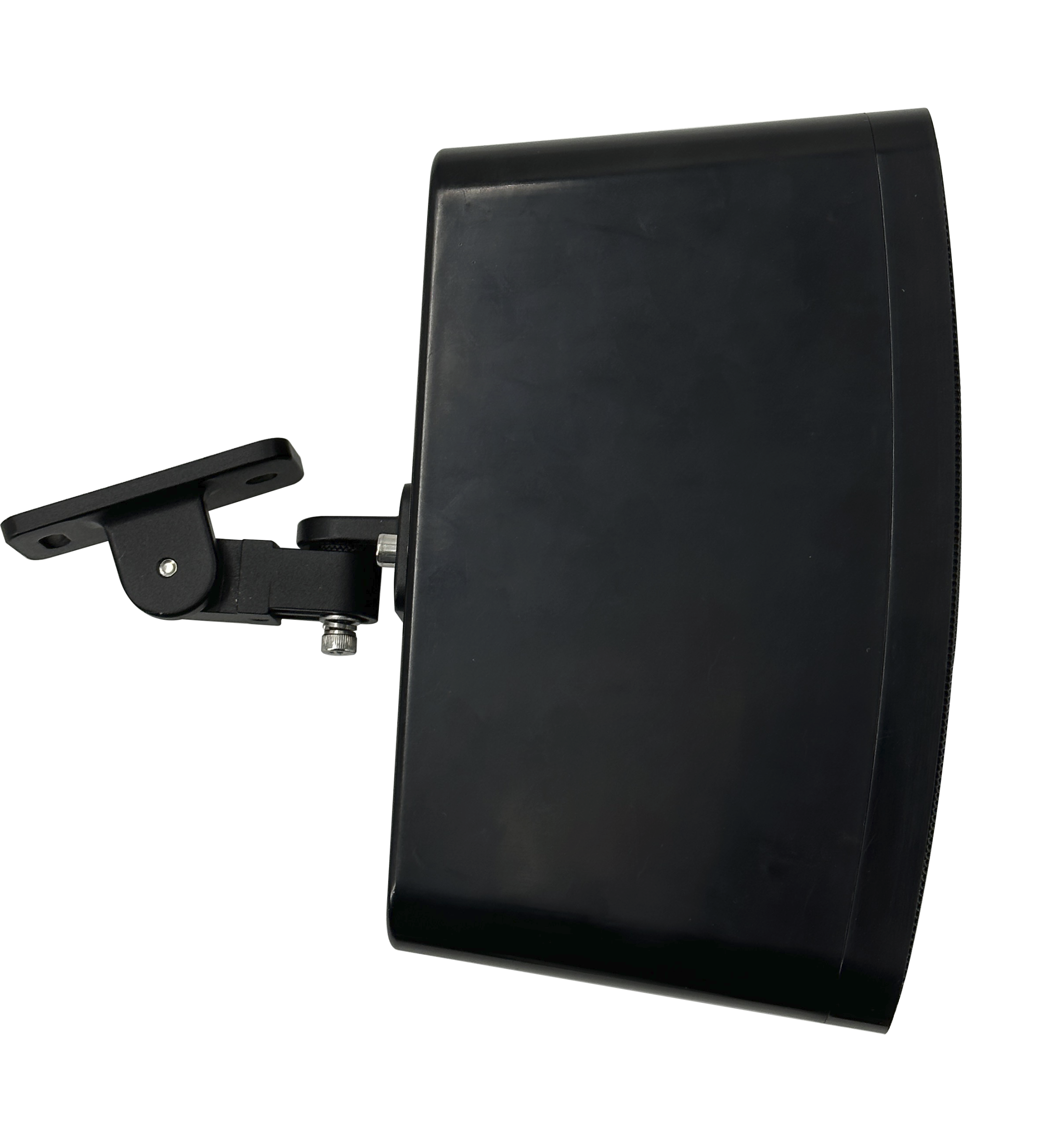

- Quick installation by supplied 360 degree rotatable aluminum mounting bracket
- WSK-523 as option of 100V black
- WSK-523L of 8Ω low impedance version
Specification:
Model | WSK-523S |
| Description | 5.25” 2-Way Wall Mount Speaker |
| Rated Power Output | 30W |
| Power Taps | 30-15-7.5-3.75W & 8Ω |
| Line Input | 100V or 70V |
| Frequency Response | 60-20KHz |
| SPL(@1W/m) | 91±3dB |
| Speaker Unit | 5.25” paper dual cone speaker unit |
| Dimension | 230×160×135mm |
| Material | ABS enclosure and waterproof finish metal grille in black |
| Mounting Way | Quick installation by 360 degree rotatable aluminum bracket |
| Net Weight | 2.5kg |
Side View & Dimension:

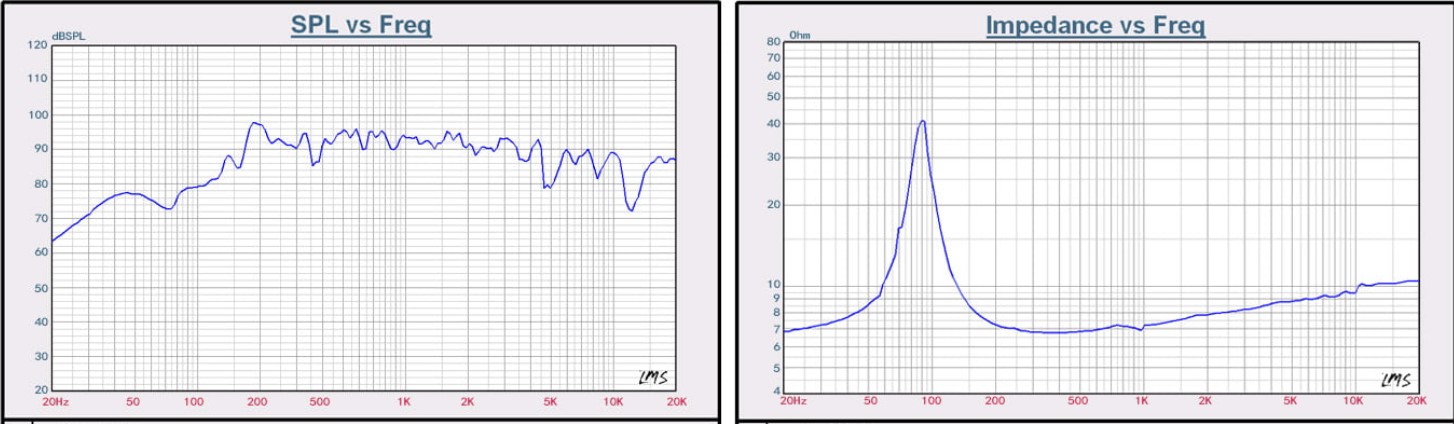

Impedance VS SPL Diagrams:
