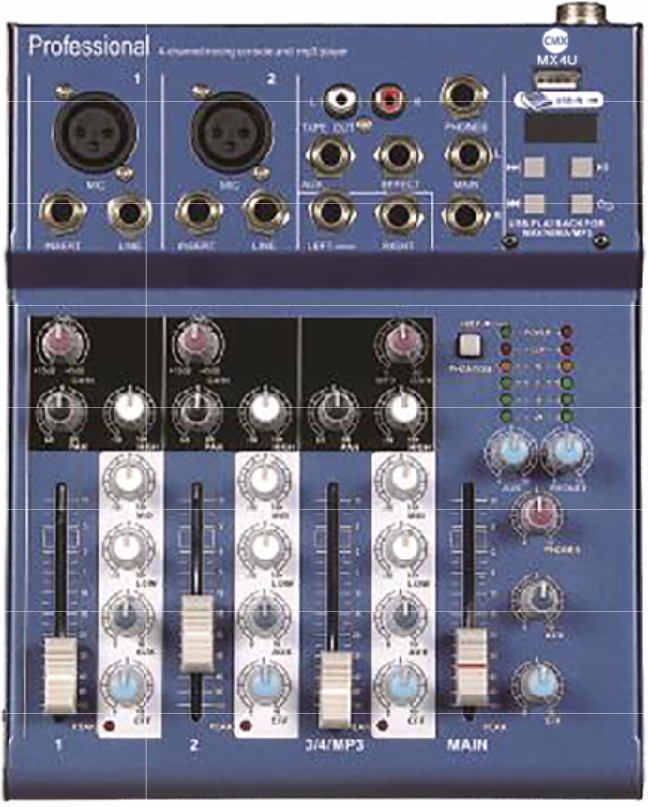

4 Channel Mini Mixer with Mp3 MX4U
4 Channel Mini mixer for professional sound system.Economy range of professional mini mixer.Application for commercial audio, installation sound system and live performance.
Features:
- 4 Channel Mini mixer for professional sound system.
- Economy range of professional mini mixer.
- Application for commercial audio, installation sound system and live performance.
- Ideal for school sound system, hotel sound system, meeting room sound system etc.
- Feed in versatile sources from balanced microphone,unbalanced microphone, line or tape
- The built-in DSP processor can stereo or separately control the left and right channel output.
- The built-in Mp3 player is designed with USB for easy control.
- With +48V phantom power for various microphone input.
- 3 Bands of EQ and 99/24 Bits 16 DSP processor for superior sound quality
- Built-in delay mixer effector and playback interface
Specifications:
Model | MX4U |
| Description | 4 Channel Mini Mixer with Mp3 |
| Channel | 4 Mono |
| DSP | 99/24 Bits 16 DSP processor |
| Out | Main stereo output, aux output and return |
| Input Sensitivity | Mic:-60dB Line:-20dB Effector:-20dB Tape:-20dB |
| Output Voltage | Earphone: 200Ω, 300mW Others: +20dBu |
| Phantom Power | +48V DC |
| S/N Ratio | >85dB |
| THD | <0.03% at rated power |
| Crosstalk | -82dB |
| Frequency Response | 20-20KHz |
| EQ 3 Bands | Treble: 12KHz, ±15dB Middle:600KHz, ±15dB Bass:80Hz, ±15dB |
| Dimension | 54×185×236mm |
| Weight | 1.7kg |
