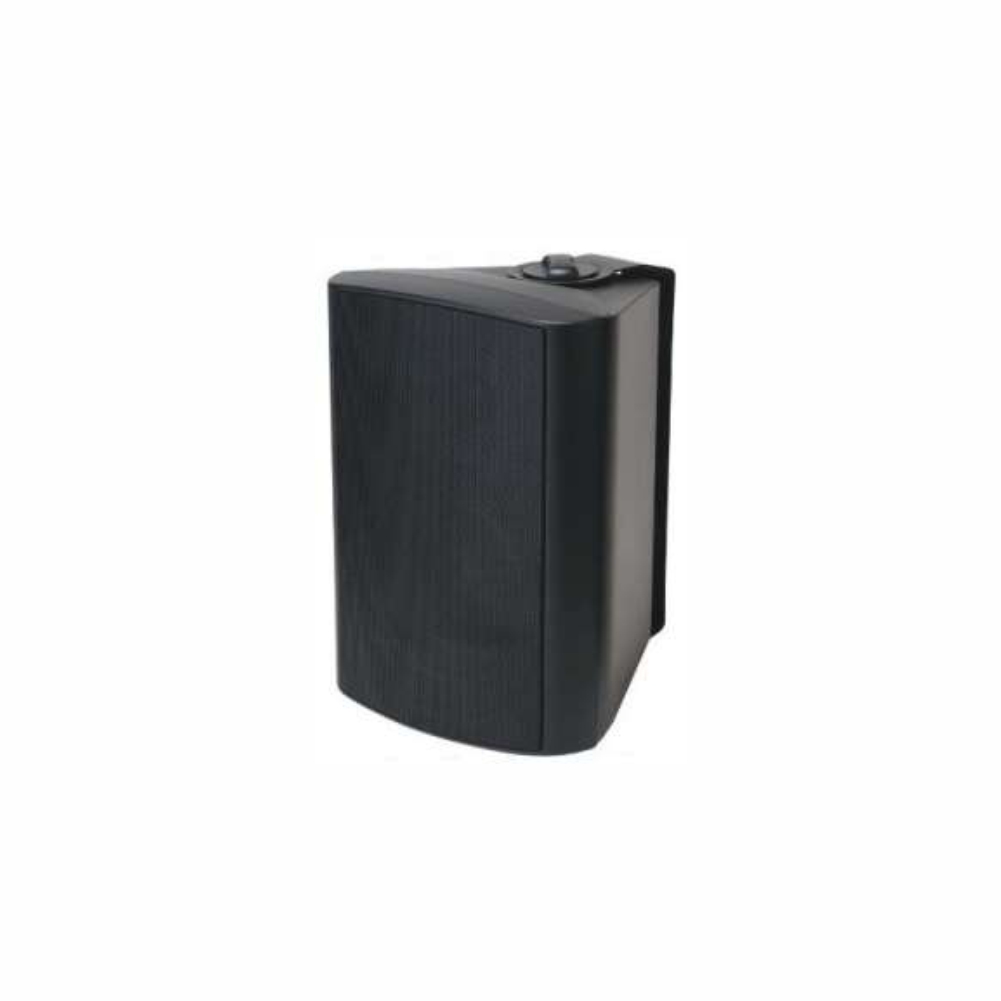

4” 2-Way Outdoor Wall Mount Speaker WSK-420CSIP
100V 70V Speakers Waterproof Speaker IP66 Waterproof Fashion Speaker Wall Mount SpeakerWSK-420CSIP is outdoor and waterproof IP66 4" 2-way wall mount speaker with 100V & 8 Ohm power tapping, 20W/10W/5W, ideal for outdoor music like park, zoo, garden and playground sound system.
100V 70V Speakers Waterproof Speaker IP66 Waterproof Fashion Speaker Wall Mount Speaker
Feature:
- Commercial public address speaker with transformer
- Ideal for outdoor BGM and paging system
- Power output 20-10-5-2.5W & 8Ω
- 4' weatherproof woofer and 1” mylar tweeter
- ABS enclosure, metal grille in black
- ABS enclosure, aluminum grille & stainless mounting bracket
- Waterproof cable gland secure wiring is protected for outdoor
- WSK-420CSWIPW as option of white color
Specification:
Model | WSK-420CSIP |
| Description | Outdoor Wall Mount Speaker |
| Rated Power Output | 20W |
| Power Taps | 20-10-5-2.5W & 8Ω |
| Line Input | 100V or 70V & 8Ω |
| Frequency Response | 100-20KHz |
| SPL(@1W/m) | 88±3dB |
| IP Rate | IP66 |
| Speaker Unit | 4' weatherproof woofer and 1” mylar tweeter 2-way speaker system |
| Dimension | 220×162×145mm |
| Material | ABS enclosure,aluminum grille & stainless mounting bracket in black |
| Mounting Way | Quick installation by supplied stainless mounting bracket |
| Net Weight | 2.2kg |

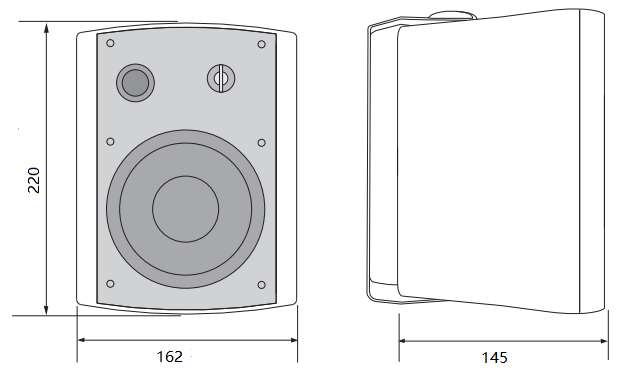

Side View & Dimension:

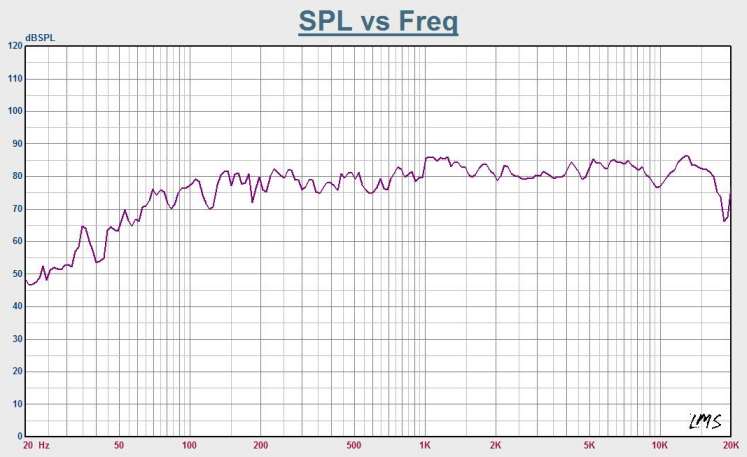

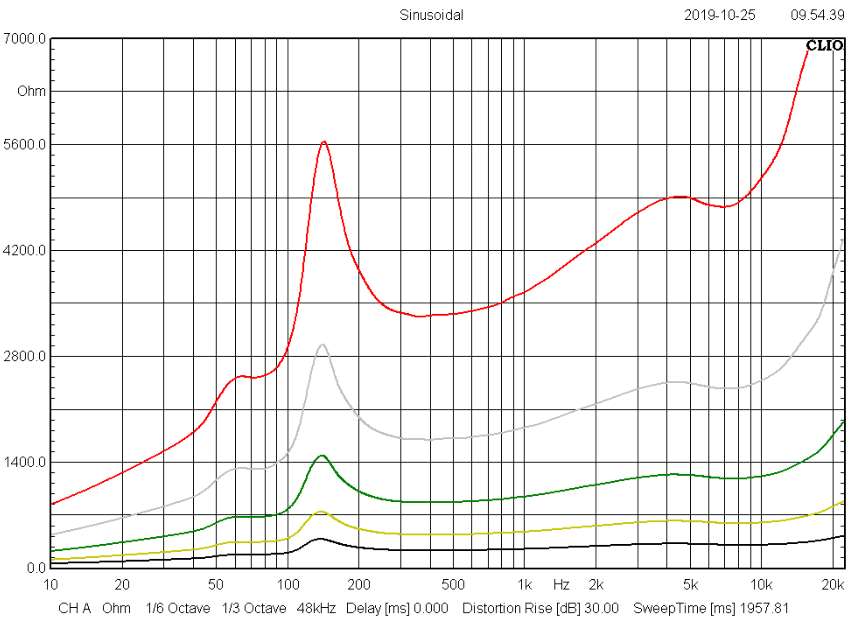

Impedance VS SPL Diagrams:
