2-Way Professional Loudspeaker PROX8/PROX10/PROX12/PROX15

Graphic
Detail

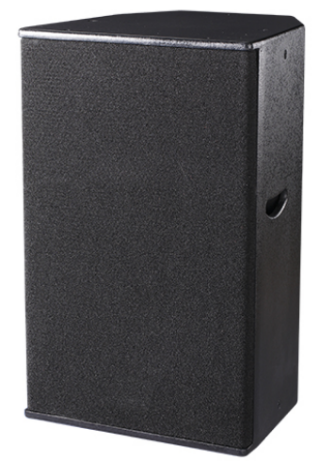

2-Way Professional Loudspeaker PROX8/PROX10/PROX12/PROX15

PROX range professional loudspeaker is an enhanced multi-purpose 2-way passive loudspeaker system, comprising of 8”, 10", 12” & 15” high power woofer for low frequencies, 1 x 44mm Titanium tweeter for high frequencies, thus to create superior sound effect. The passive loudspeaker can be used along with a reflex subwoofer system to have considerable low frequency, so it is ideal 2-way loudspeaker for professional sound reinforcement system like live performance, theater, club and auditorium appli

Product Detail

Feature:

• 2-Way passive professional loudspeaker for permanent installation or mobile use

• 8”, 10", 12” & 15” and exit compression driver coaxial driver unit

• 70°x 70° horizontal and vertical wide angle dispersion

• Strong enclosure structure suitable for long year durable use

• 20 hanging points for versatile hanging or wall mount installation

• Applications: Medium scale venues auditorium, theatre, clubs etc

• Optional to buy with mounting bracket WB-500 or floor stand FS-500

Description:

PROX range professional loudspeaker is an enhanced multi-purpose 2-way passive loudspeaker system, comprising of 8”, 10", 12” & 15” high power woofer for low frequencies, 1 x 44mm Titanium tweeter for high frequencies, thus to create superior sound effect. The passive loudspeaker can be used along with a reflex subwoofer system to have considerable low frequency, so it is ideal 2-way loudspeaker for professional sound reinforcement system like live performance, theater, club and auditorium applications.

Specification:

Model	RPOX8	PROX10	PROX12	PROX15
Description	2-Way Professional Loudspeaker
LF Driver	8”	10”	12”	15”
HF Driver	1 x 44mm Titanium tweeter
Frequency Response	60Hz-20KHz(±3dB) 1watt@1m	50Hz-19KHz(±3dB) 1watt@1m	45Hz-19KHz(±3dB) 1watt@1m	38Hz-19KHz(±3dB) 1watt@1m
Frequency Response	30 Hz-20 kHz (±3 dB)-10 dB @ 55 Hz
Rated Power	200 Watts	250 Watts	450 Watts	500 Watts
Maximum Power	300 Watts	500 Watts	800 Watts	1000 Watts
Nominal Impedance	8 Ohm
Dispersion (H x V)	70°x 70°
Sensitivity (1 m/1W)	99dB	99dB	103dB	109dB
MAX. SPL	109dB	109dB	122dB	126dB
Fittings	20 x M10 Flying points, 1 x Pole mount Socket
Dimensions	275x260x440mm	330x310x528mm	375x365x595mm	423×440×698 mm
Weight	12kg	20kg	23.3kg	26.6kg

Wall Mount Bracket WB-500

Floor Stand FS-500
