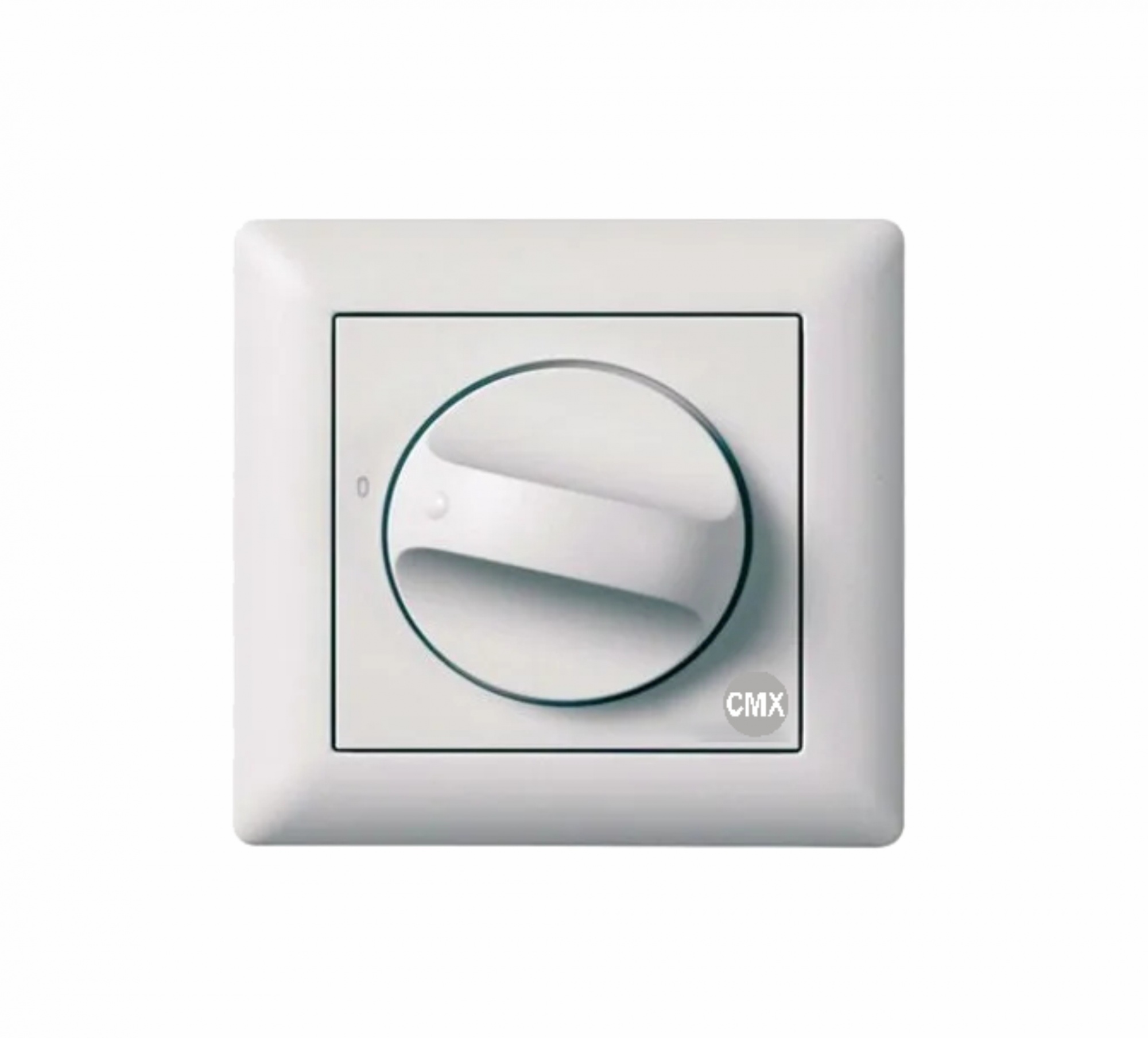

100V Volume Control VC-S10/VC-S20/VC-S30/VC-S60/VC-S120
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume Controller Volume Controller with RelayPA (Public address) system use volume control.Volume control 10W-20W-30W-60W-120W.Built in transformer to control the PA 100V or 70V line loudspeakers.Power-save version.Continuous rotating system.Program selector with up to eleven channels.Complies with international installation and safety regulations.
100V Volume Controller 100V Volume Control Volume Attenuator Transformer Speaker Volume Controller Volume Controller with Relay
Feature:
- PA (Public address) system use volume control
- Volume control 10W-20W-30W-60W-120W
- Built in transformer to control the PA 100V or 70V line loudspeakers
- Power-save version
- Continuous rotating system
- Program selector with up to eleven channels
- Complies with international installation and safety regulations
Specification:
Model | VC-S10 | VC-S20 | VC-S30 | VC-S60 | VC-S120 |
| Description | 100V Volume Control | ||||
| Rated Output | 10W | 20W | 30W | 60W | 120W |
| Line Input | 100V or 70V | ||||
| Volume Step | 11 steps | ||||
| Attenuation Steps | 8x 3 dB + off | ||||
| Total Attenuation | 24dB | ||||
| Finish | White | ||||
| Mounting Way | Surface mount or in-wall mount | ||||
| Depth | 35mm | ||||
| Dimensions | 86 x 86mm | ||||
Side View, Dimension & Wiring Diagram:
